Controller CLARE 5:
Controller CLARE 5

Starting the program

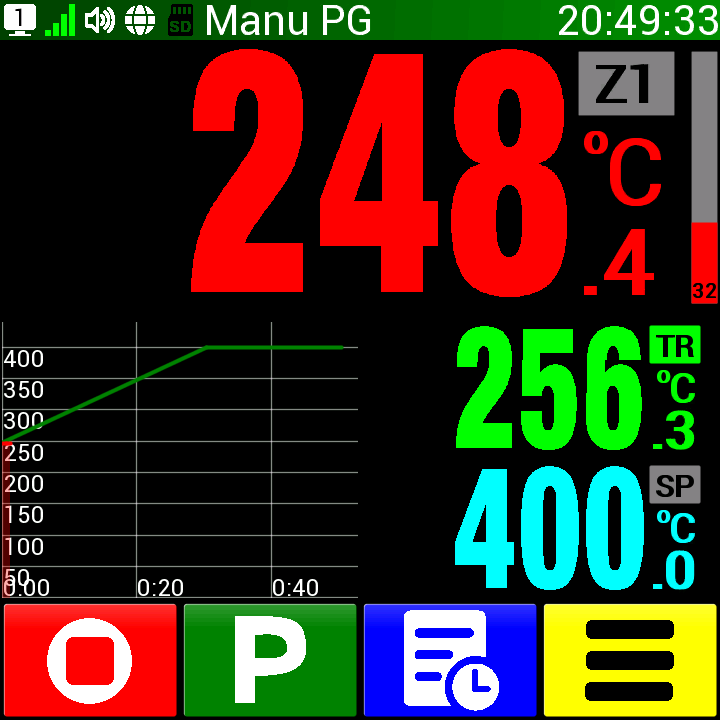

If the desired day and time of the delayed start occurs or the manual program is directly started with the button  (Start) this screen will appear.

The mode of the running manual program can be recognized by the following indicators:

the status bar is shown in green

an inscription is permanently displayed in the middle of the status bar Manu PG

the regulated temperature or the time remaining until the end of the temperature delay is displayed in the middle part of the screen

instead of a button  (Start) a button  (Stop - Stopping the program) is displayed as an option to end the manual program - details in the article Stop the program.

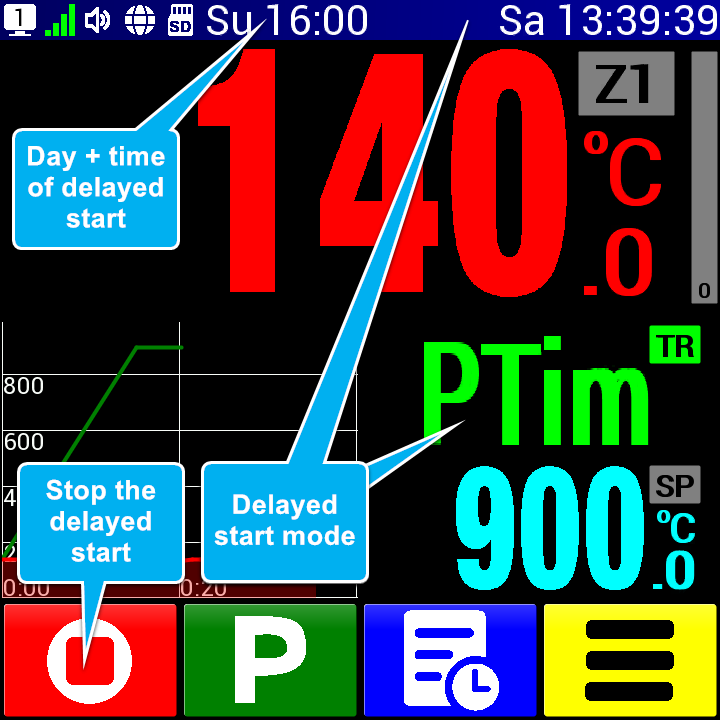

In case we have used delayed start to start the program, this home screen will be displayed. The delayed start mode and waiting for the desired day and time can be seen from these indicators:

the status bar is displayed in blue

the inscriptions alternate in the middle of the status bar  Manu PG  and  Su 21:10 , which indicate that the manual program will be started on the appropriate day and time

a large inscription is displayed at the place of the regulated temperature Tim (Program Timer) alerting to a delayed start

instead of a button  (Start) a button  (Stop - Start stop) is displayed as an option to stop the delayed start.

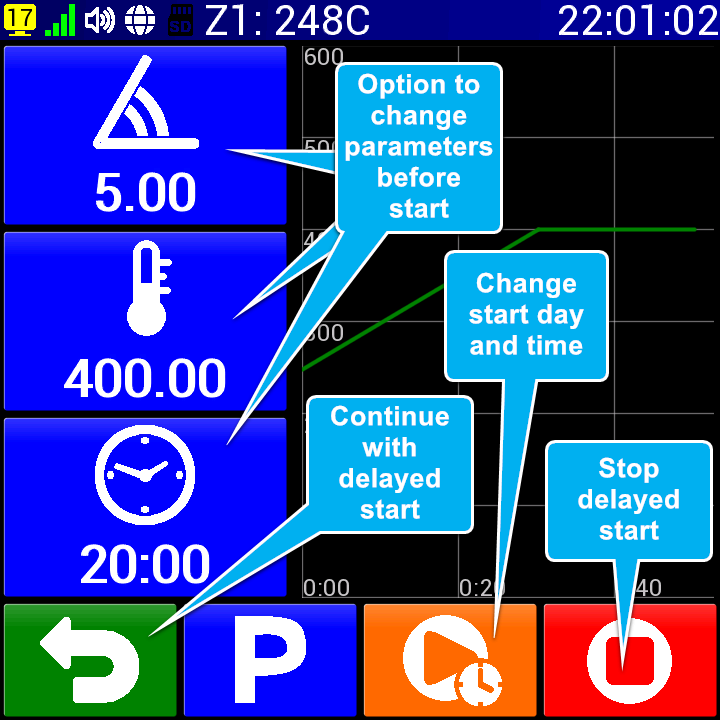

If we press the button  during delayed start the following screen will appear, similar to the screen for preparing to run the program:





Now we have the possibility to change the parameters of the manual program even before it starts.

change of temperature ramp rate - see article Rate of temperature change

change of the set temperature - see article Set temperature

change of  delay time at the temperature - see article Temperature delay

change of day and time of program start - according to the article Delayed start

The screen also offers to exit the delayed start mode with a button  (Stop). In that case, the home screen will appear in idle mode - see Manual mode.
