Rate of temperature change |
|
.png)

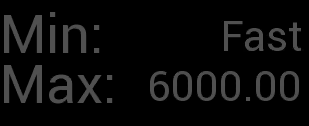

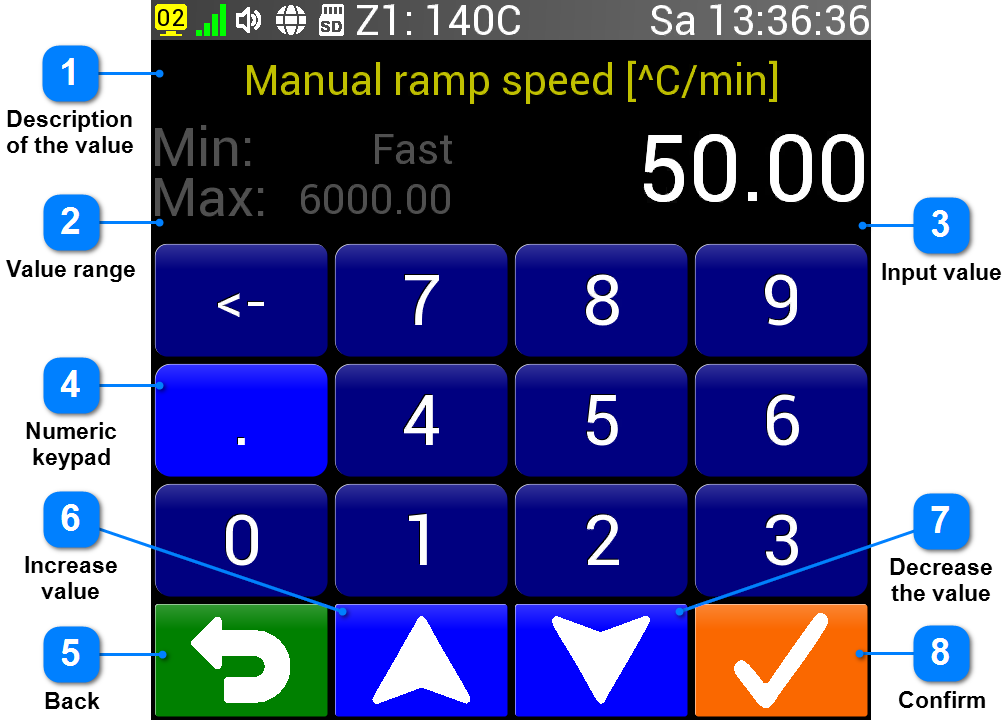

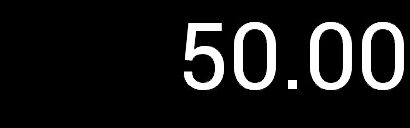

After pressing the ramp button on the program launch preparation screen, a universal screen is displayed for entering various values (parameters) of the controller. The rate of temperature change can be entered in the range of 0.00 to 6000.00 °C per minute with accuracy to two decimal places. If we enter a value of 0.00 (also referred to as Fast) the change is made immediately, and the controller will therefore heat or cool to the set temperature at the maximum speed achievable in the regulated device. It is not possible to enter a value outside the allowed range. The value can be entered using the numeric keypad or the increase and decrease buttons. The entered value is confirmed with the appropriate button, or it is possible to return to the previous screen without confirmation using the Back button.
|
Description of the value |
|
|
A brief description of the value or parameter that we will enter, with an indication of the units. |
|
|
|
|
-number-1.png)
-control-1.png){kind=small}
-number-2.png)
-control-2.png)
-number-3.png)
-control-3.png)
|

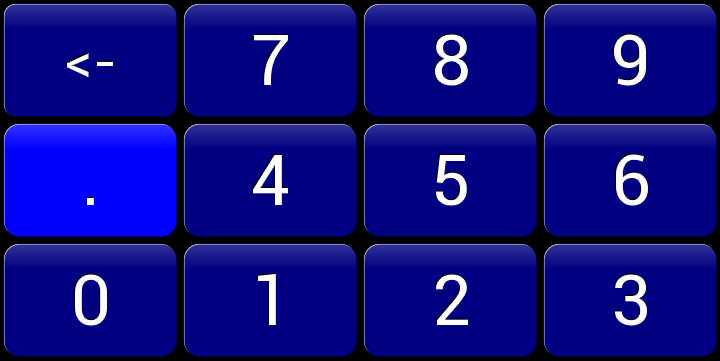

Numeric keypad |
|
|
The numeric keypad, similar to a calculator, allows you to enter the desired value. Button <- is used to delete the last digit entered. |
|
|
|
|
-number-4.png)
-control-4.png)
|
Back |
||
|
|
With this button, we can return to the previous screen while maintaining the original value (parameter). |
|
-number-5.png)
.png)
|
Increase value |
||
|
|
Button to increase the rate of temperature change. It is possible to hold the button and thereby increase the set temperature repeatedly at an accelerated rate. |
|
-number-6.png)
.png)
|
Decrease the value |
||
|
|
Button to reduce the rate of temperature change. It is possible to hold the button and thereby repeatedly reduce the set temperature rapidly. |
|
-number-7.png)
.png)
|
Confirm |
||
|
|
Confirming the entered value and returning to the previous screen - article Preparing to run the program. |
|
