Controller CLARE 5:
Controller CLARE 5

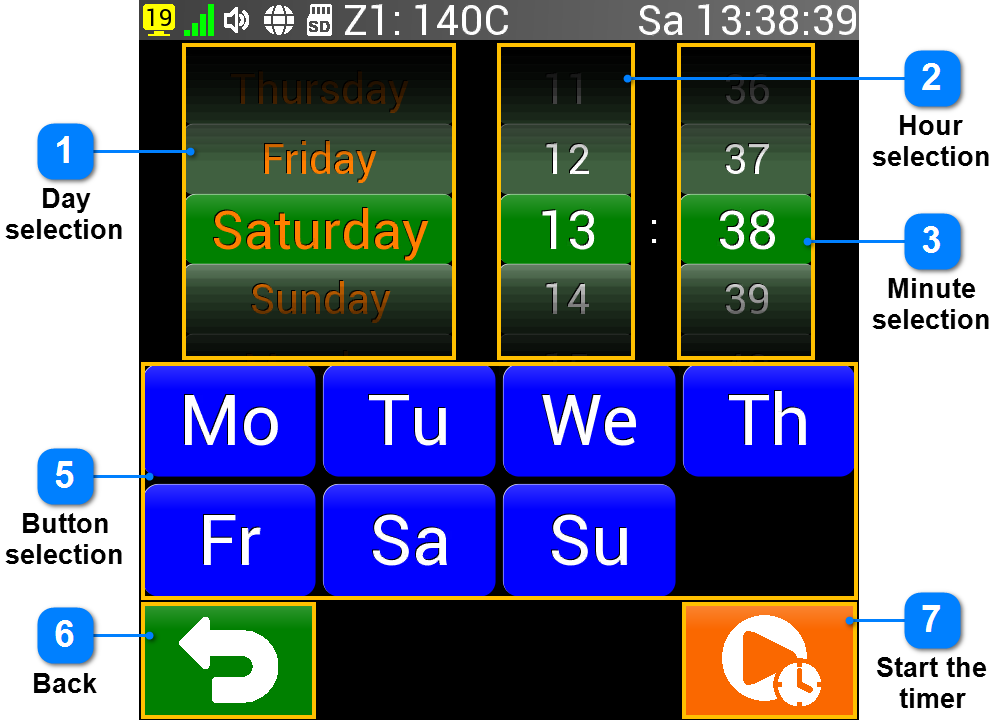

Delayed start







Delayed start allows you to postpone the start of the selected program to a later time. Shifting is possible up to a week in advance, so you can enter the day of the week, hour, and minute of the start. Entry is possible in two ways. The first is the use of rotating elements ( 1 - 3 ), where we select the desired start time by moving these elements. By default, the time can be set in 5-minute increments; in the Settings, there is an option to display the rotating element in steps of 1 minute (article Step at delayed start).

The second way is to enter the time using the buttons in the Selection area ( 5 ). Here we enter the time in 24-hour format in the form 0930 for the required time 9:30 (morning). Confirm the entered time with the button Later ( 7 ) or it is possible to return to the previous screen without confirming using the Back button.

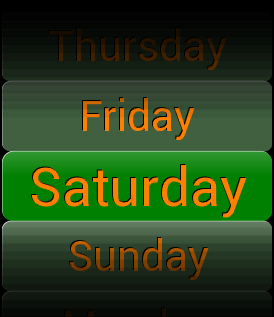

Day selection

Rotary element for selecting the day of the week. The selected value is displayed in the center in a larger font with a green background.

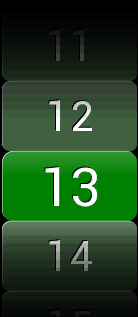

Hour selection

Rotary element for the hour of program start. Range 00-23. The selected value is displayed in the center in a larger font with a green background.

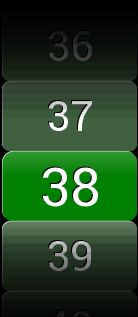

Minute selection

Rotary element for the minute the program starts. Range 00 - 55 (or 00 - 59). The selected value is displayed in the center in a larger font with a green background.

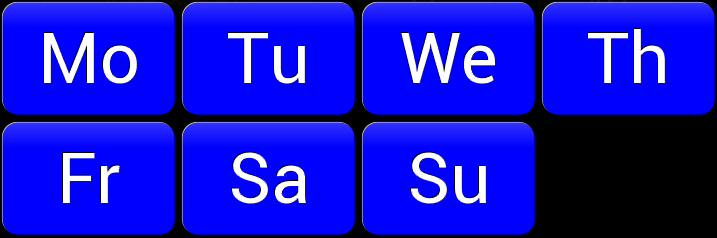

Button selection

The area where the buttons for selecting the day and time to start the program are displayed. Range Mon - Sun for the day of the week or digits 0 - 9. Only those digits that can be currently used are displayed.



Back

With this button, we can return to the previous screen while maintaining the original value (parameter).

Start the timer

Return to the home screen and start the program's delayed start timer.
