Set temperature

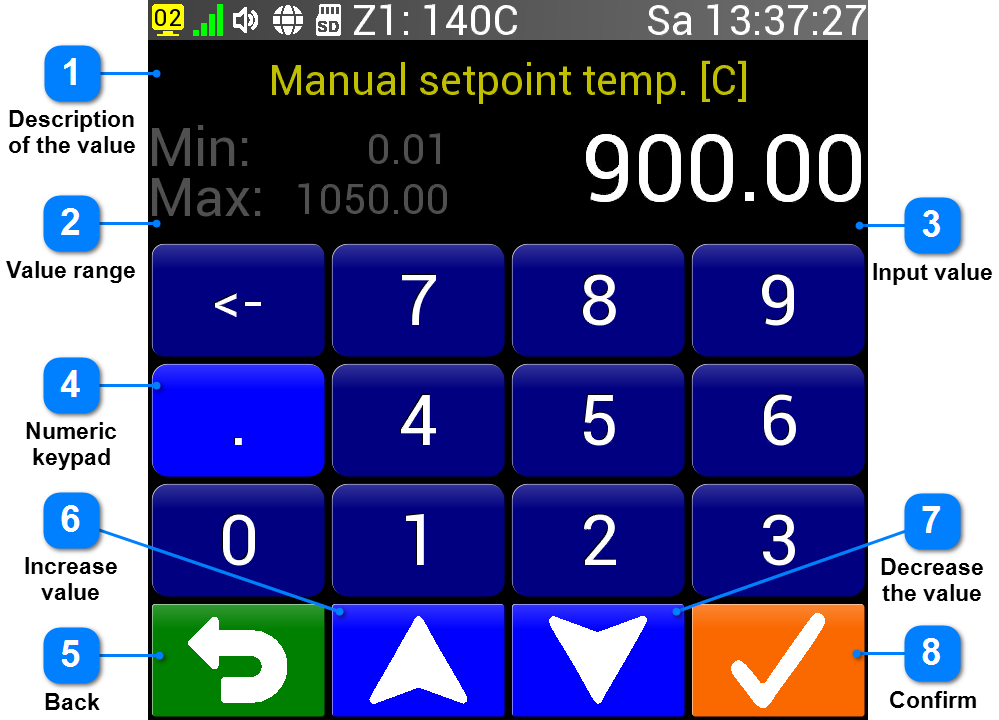

After pressing the temperature button on the program launch preparation screen, a universal screen is displayed for entering various values (parameters) of the controller. The set temperature can be entered in the range of 0.01 to the maximum temperature (according to Settings - article Maximum control temperature) to two decimal places. It is not possible to enter a value outside the allowed range. The value can be entered using the numeric keypad or the increase and decrease buttons. The entered value is confirmed with the appropriate button, or it is possible to return to the previous screen without confirmation using the Back button.

ATTENTION: Set temperature

If the required temperature is entered incorrectly and the regulation is set at temperatures higher than those permitted for the connected equipment or for the heated materials, the equipment or materials may be damaged or destroyed by overheating!

	Description of the value
	A brief description of the value or parameter that we will enter, with an indication of the units.

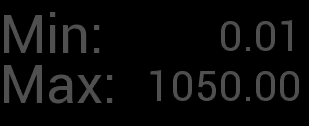

	Value range
	The allowed range for the set temperature is 0.01 to the maximum temperature (according to Settings - article Maximum control temperature) °C.

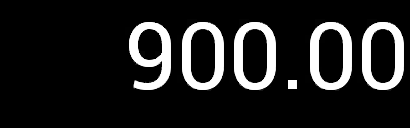

	Input value
	At this point on the screen, we see the value or parameter that we enter.

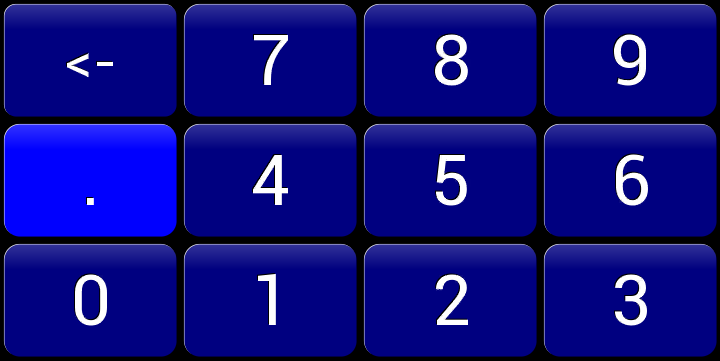

	Numeric keypad
	The numeric keypad, similar to a calculator, allows you to enter the desired value. The button <- is used to delete the last digit entered.

	Back
		With this button, we can return to the previous screen while maintaining the original value (parameter).

	Increase value
		Button to increase the set temperature. It is possible to hold the button and thereby increase the set temperature repeatedly at an accelerated rate.

	Decrease the value
		Button for lowering the set temperature. It is possible to hold the button and thereby repeatedly reduce the set temperature rapidly.

	Confirm
		Confirming the entered value and returning to the previous screen - article Preparing to run the program.
