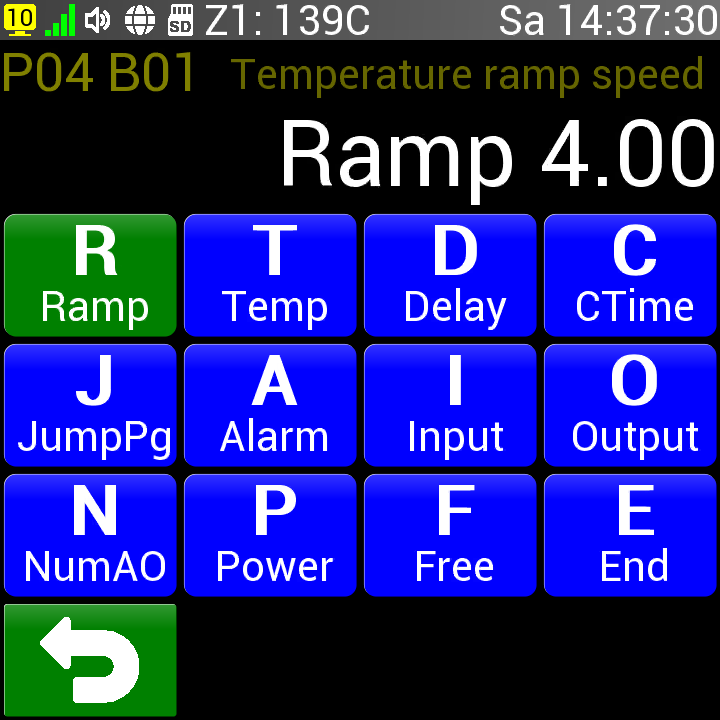

•Command R = Ramp used to set the rate of temperature change.

•The set rate of temperature change applies to all further increases and decreases in temperature until the next change with the C (CasNT) or R (Ramp) command.

•The ramp speed after starting the program is taken from the manual mode (Article Rate of temperature change).

•At ramp speed 0.00 is displayed Fast which means that the controller reaches the temperature as quickly as possible.

•When changing the speed of the ramp to a certain temperature, it is necessary to enter the ramp first and then the block with the temperature.

•The equivalent of this command is a command CasNT (articleC command (CasNT)), which instead of the rate of temperature change in degrees Celsius per minute, specifies the time in which the temperature is to be reached.

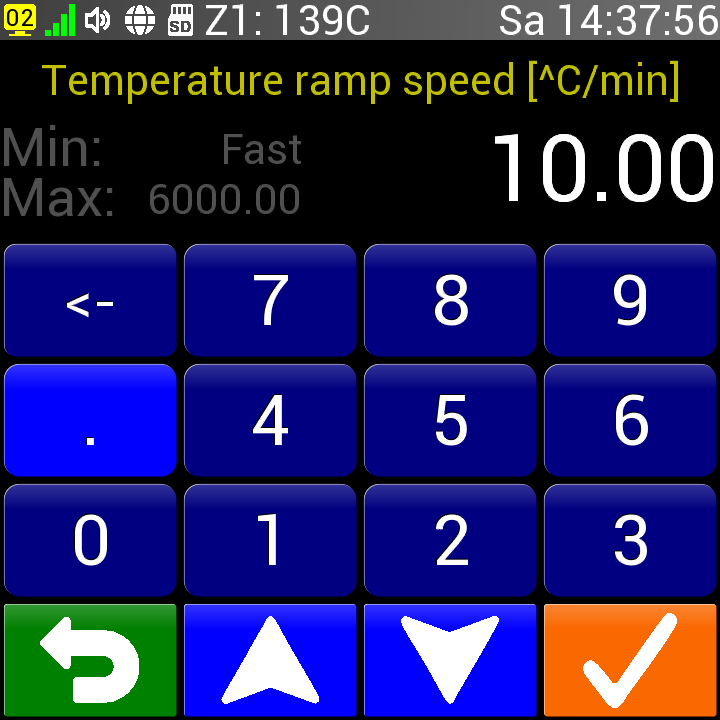

After pressing the button with the R (Ramp) command, the screen for entering the desired speed value will appear.





•Ramp range: 0.01°C/min to 6000.00°C/min or Fast (as fast as possible).

•The value can be entered using the numeric keypad or the up and down arrows.

•If we hold the up or down button, the value will change faster and faster.

•An incorrectly entered value cannot be confirmed with the button  (OK).

•With a button  (Back) we cancel the addition or change of the block.
