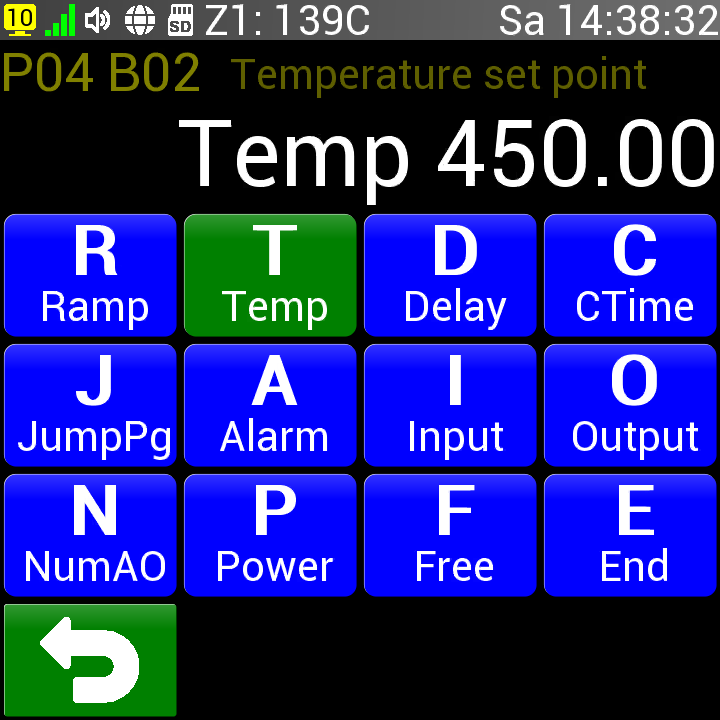

•Command T = Temp. used to set the required temperature for regulation (abbreviation SP = Set Point).

•This command is also described in the article Set temperature in manual mode.

•The controller will approach this temperature at the speed specified by the command Ramp (article Command R (Ramp).

•Depending on the settings, the controller will wait until the actual temperature reaches the set temperature or will continue the program immediately after reaching the set temperature with the temperature regulated.

•Command for new temperature change rate Ramp must be entered before the command Temperature

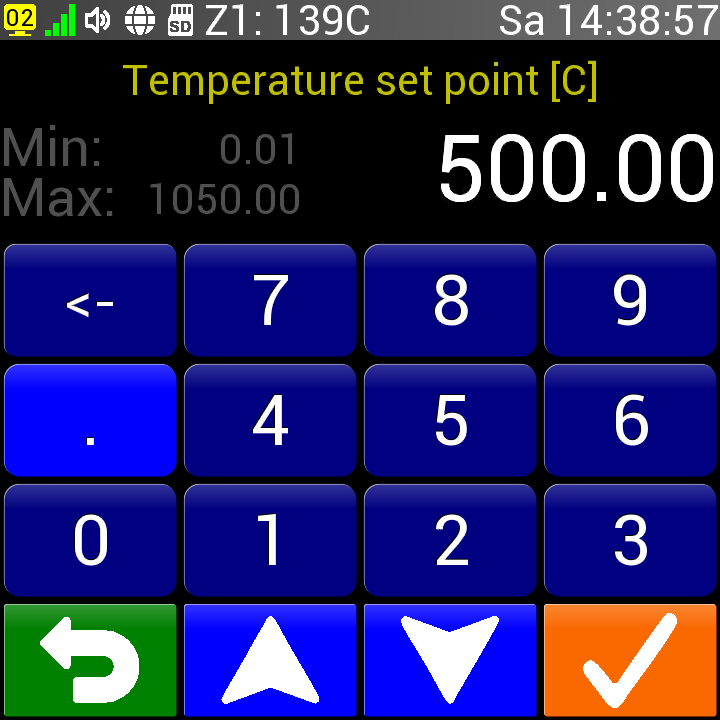

After pressing the button with the T (Temp.) command, the screen for setting the desired temperature will appear.





•Temperature range: 0.01°C to maximum temperature according to setting (Article Maximum control temperature).

•The value can be entered using the numeric keypad or the up and down arrows.

•If we hold the up or down button, the value will change faster and faster.

•An incorrectly entered value cannot be confirmed with the button  (OK).

•With a button  (Back) we cancel the addition or change of the block.
