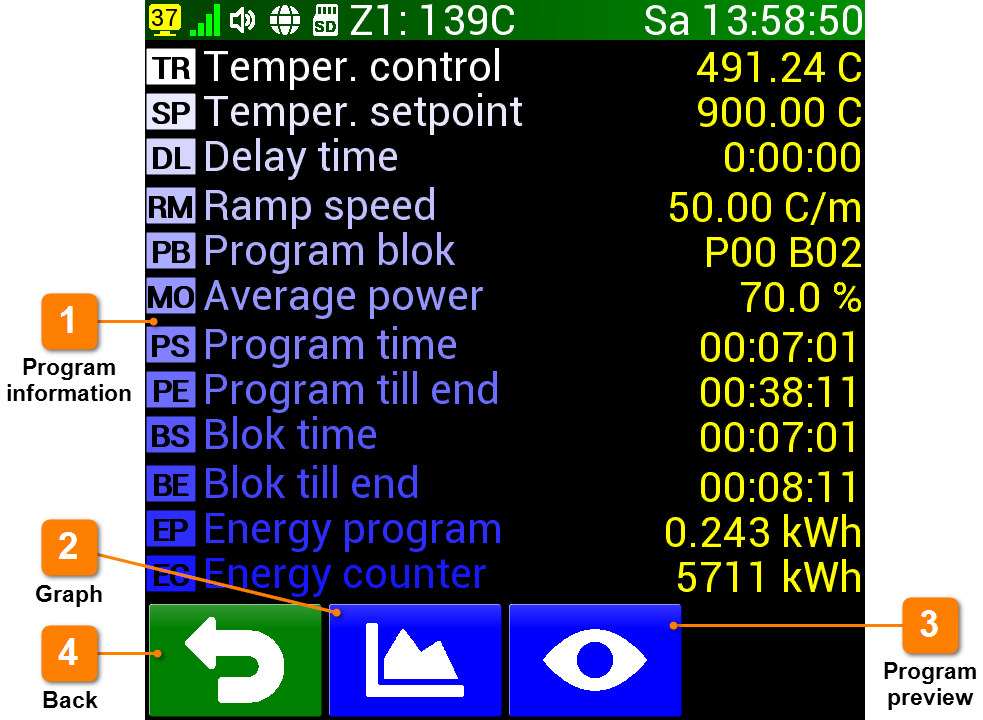

Information screen

The information screen provides detailed information about the current progress (running program). It clearly displays 12 relevant information, their abbreviations and current values. With a button (Graph) it is possible to display the graph of the current progress with the and button (Preview) program information.

Program information

12 current information about the current progress is displayed:
TR Control temperature, value in hundredths of °C
SP Set temperature, value in hundredths of °C
DL Delay time, HH:MM:SS or CONT format for continuous delay
RM Temperature change rate in °C/min or FAST for maximum speed
PB Number of the executed program and block
MO Average heating power in tenths of a percent
PS Time since program start (progress) in HH:MM:SS format
PE Time until the end of the program (progress) in HH:MM:SS format
BS Time since the start of the current block in HH:MM:SS format
BE Time until the end of the current block in HH:MM:SS format
EP Energy consumed during this process
EC Total energy consumed

	Graph
		Displaying the progress graph - details in the article Graph control

	Program preview
		Information about the ongoing program. In manual mode, it displays the parameters of the manual program (Preparing to run the program) and in the programming mode displays a list of the running program (Program editing).

	Back
		Return to the previous screen
