Graph control

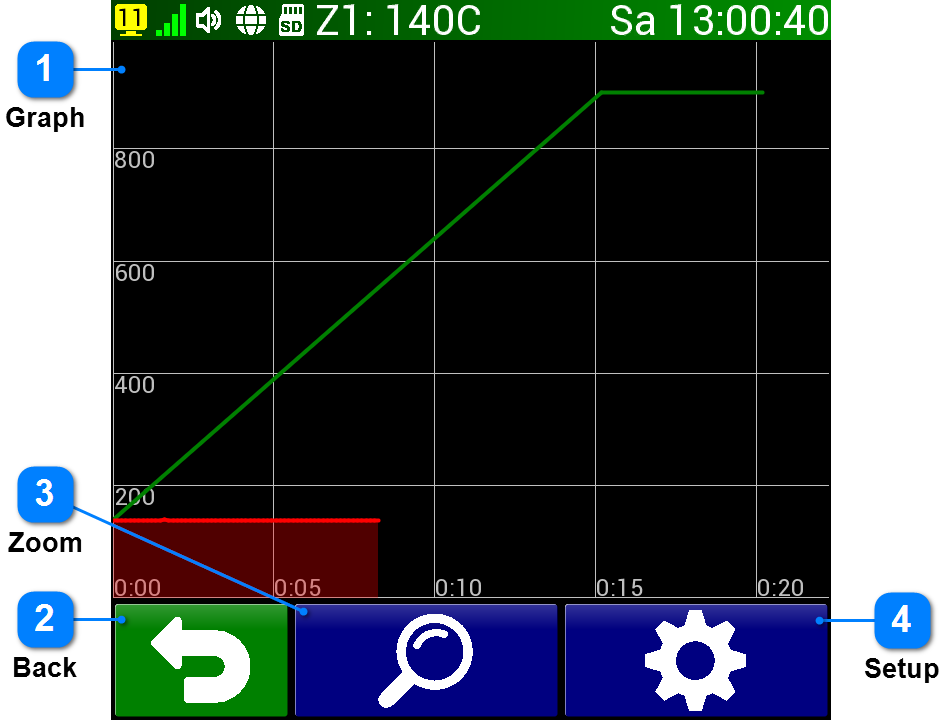

The graph screen is used to accurately display the programmed temperature curve and the current (or earlier, for waveform database) actual temperature curve. In the basic settings, the program curve is drawn in green and the actual temperature curve in red. The curves can be zoomed to a resolution of 0.01°C and 1 second. The graph can be moved by touch, enlarged, or the button bar can be used to achieve the desired graph display. This large graph screen will appear in the following cases:

•by zooming in on the graph module on the home screen

•by pressing the Graph button in the programming mode screens

•by pressing the left part of the graph on the database screen

•by pressing the Graph button in the progress information (Prog.info)

Graph

The graph's area offers more manipulation options through simple one-finger operation:

•shift of temperature curves: scrolling the graph exactly copies the scrolling of the finger on the screen. It is not possible to scroll for too long (2 seconds) because then the zoom function is activated

•zooming of temperature curves: if the graph is touched for more than 2 seconds, it will automatically zoom around the touch point. You can also move your finger while zooming in to refine the location you are zooming in on

•optimal scaling of temperature curves: if you do a quick double-tap on the graph (similar to double-clicking the mouse on a PC), the graph scales are optimized to show both the entire program curve and the entire actual temperature curve

	Back
		Return to the previous screen.

	Zoom
		Manual zoom and shift of the graph.

	Setup
		Predefined axis scales, curves, and graph direction selection. Details can be found in the next article Graph settings.
