Progress overview

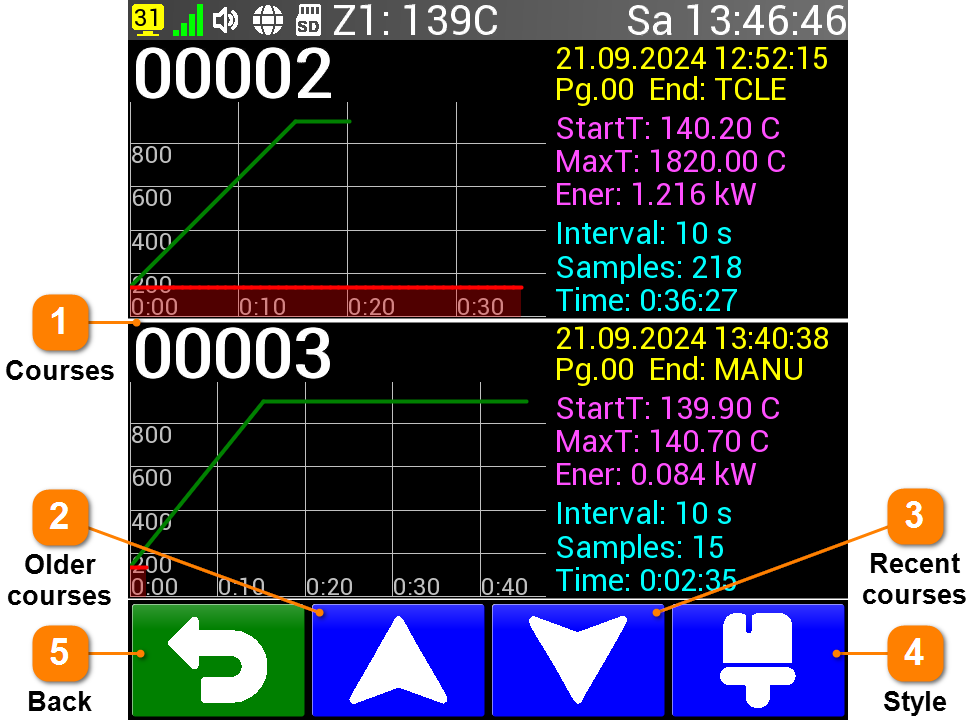

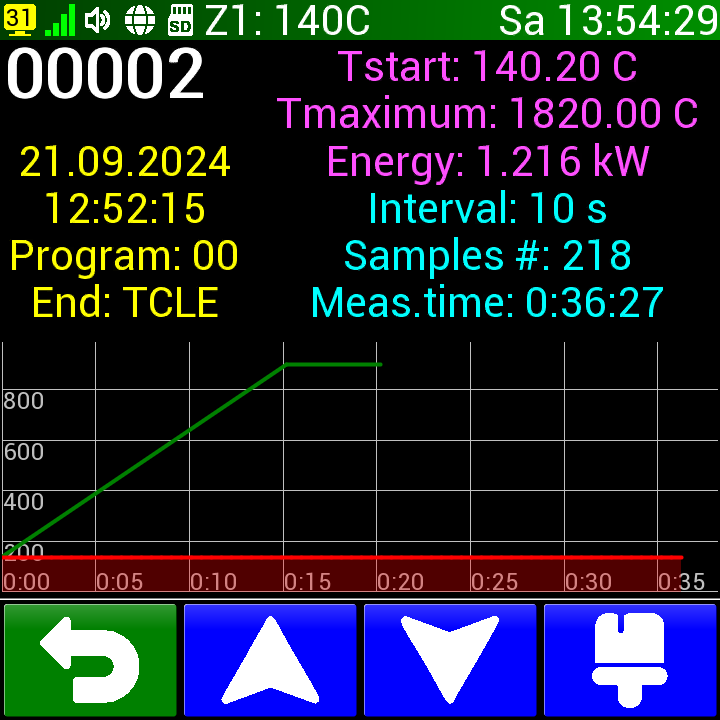

The trend overview offers a list of the last 200 trends, basic information about these trends, including a graph. We can choose the display style for 1, 2, 4 and 8 waveforms at once. Each course has its own sequence number, and after entering the course overview, the last course (it may be currently underway) is automatically displayed. We can move between the courses either by moving the finger up / down (except for the left part of the graph) or by pressing the appropriate buttons for older and newer events. By pressing the left part of the graph, it is possible to enlarge the graph across the entire screen - see article Graph control.

	Courses

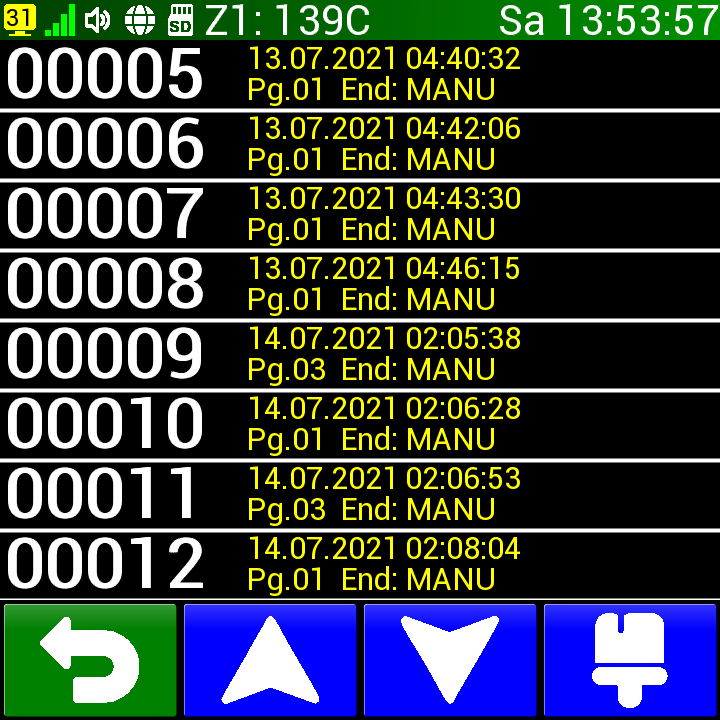

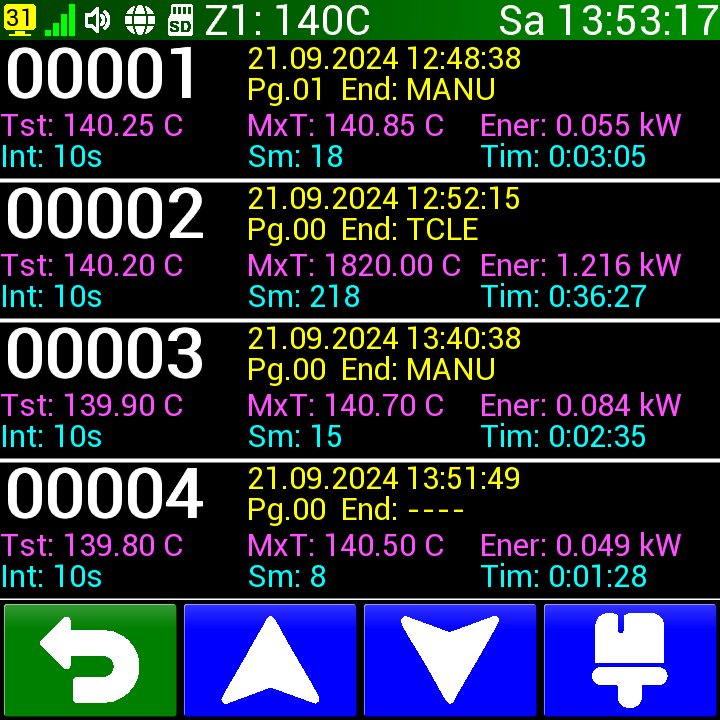

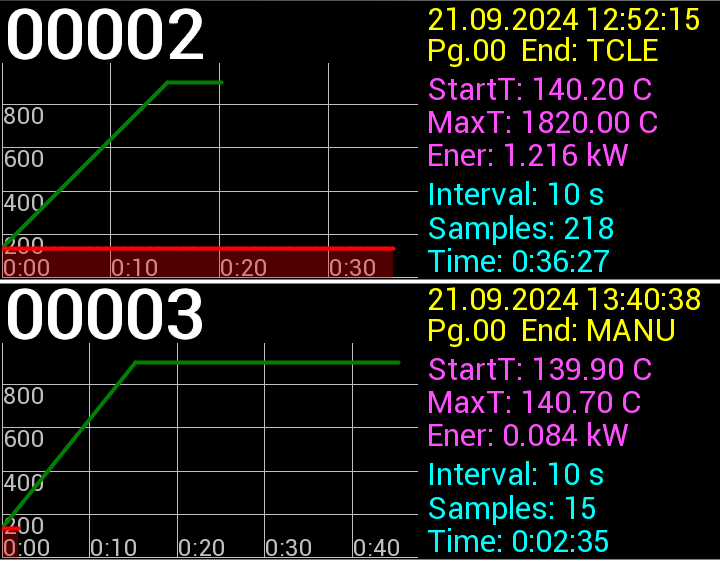

	In the 8-progress display style, only the serial number of the progress, date, time, program number and the method of its termination are displayed. The other styles also display the initial temperature, maximum temperature reached, power consumption, sampling interval, number of samples and total run time. In style 1 or 2 of the progress, the relevant graph is also displayed, which can be viewed in more detail on the entire screen by touching the left part (under the serial number of the progress).

	Older courses
		Displays older waveforms (or newest if there are already 200 waveforms in the list)

	Recent courses
		Displays newer waveforms (or oldest if there are already 200 waveforms in the list)

	Style
		Button to change display style. Toggles between displaying 1, 2, 4 or 8 waveforms simultaneously

	Back
		Return to the previous screen
