Controller CLARE 5:
Controller CLARE 5

Program editing

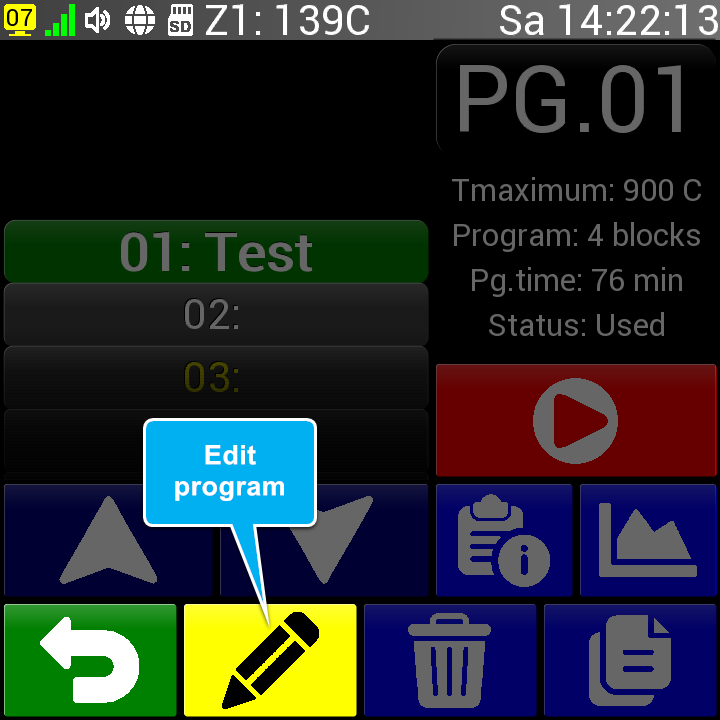

We can create a new program or modify an already created program using the button  (Treatment). After pressing it, the following similar screen for managing program blocks will appear:





The screen for managing blocks is very similar to the screen for working with programs. Here we can select a specific block in the list of program blocks, enter a label and display the program graph, insert or delete a block, and last but not least, there is a button for editing the selected block or starting the program from a specific block. We will describe these functions in the following articles.
