Listing of events

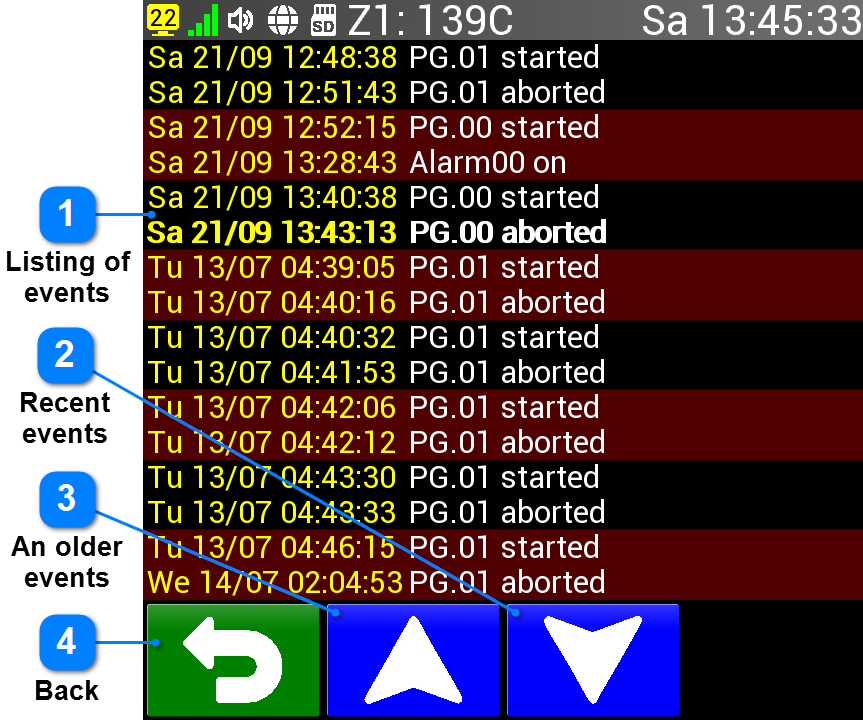

The event listing is a chronological listing of the time and events that occurred in the controller. When this screen is opened, the last event is always shown in bold on the last line. The listing can be moved either by moving your finger up / down or by pressing the appropriate buttons for older and newer events. The list of events will be expanded in future versions of the controller.

Listing of events

The time when the event occurred is displayed in the left part of the listing. The relevant event will then be displayed in white on the right

•PG.00 started - the program was started (manually or by delayed start)

•PG.00 ended - the program was regularly ended

•PG.00 stopped - the program was stopped by the user

•PG.00 interrupted - the program was interrupted due to the occurrence of an error

•PG.00 failure - a power failure occurred, the time after the failure is displayed

•BL.01 started - the time when a certain program block was started

•Alarm 1 on - the alarm has been activated - details in the article Alarms

•Alarm 1 off - the alarm has been deactivated - details in the article Alarms

	Recent events
		Shows the 16 most recent events (or the oldest if the most recent ones are already shown)

	An older events
		Shows 16 older events (or the most recent if the oldest is already shown)

	Back
		Return to the previous screen
