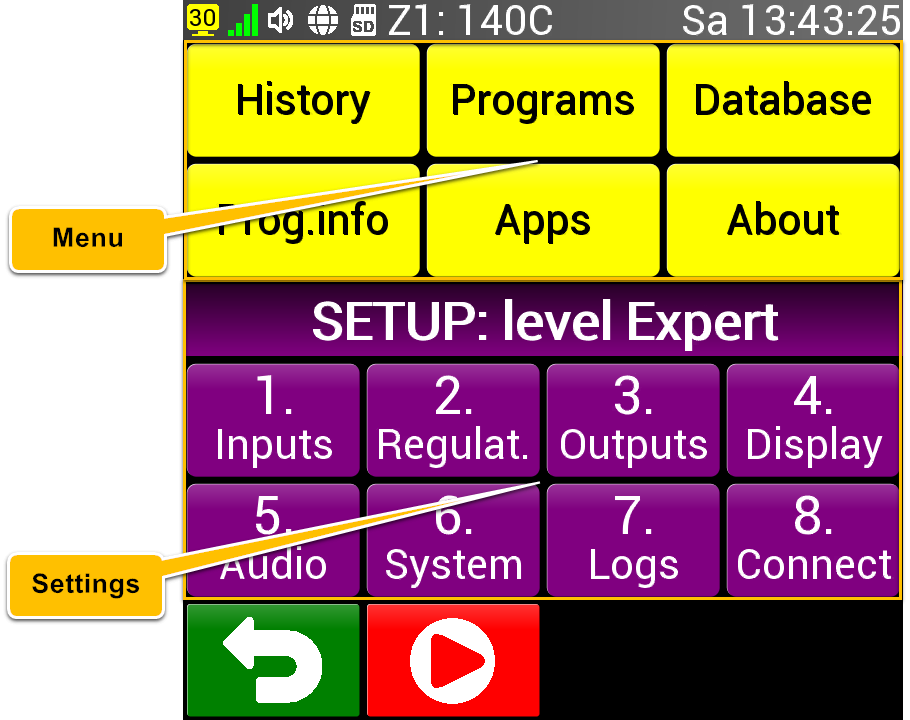

The menu is actually a signpost to the different options of the controller outside of the home screen. We can get to the Menu from the home screen by pressing  (Menu). If this button is not on the home screen, it is possible to bring up the screen by pressing and holding the display where there is no button or graph for 8 seconds. The menu at the top shows 6 buttons that link to other screens, which will be described in detail later. The lower purple part of the Menu shows individual Settings sections, which will be described in another chapter. The button bar then allows you to return to the home screen and start or stop the program.

History - here you can view a list of events that have recently occurred in the controller.
Database - contains the 200 most recent courses that were performed in the controller, including graphs.

Prog.info - information screen about the ongoing (completed) program.
Application - Calculator, Stopwatch, Alarm and Message and more.

About - information about the CLARE 5 controller.



Contents of the chapter Menu

•Listing of events

•Progress overview

•Information screen

•Application

•Controller information
