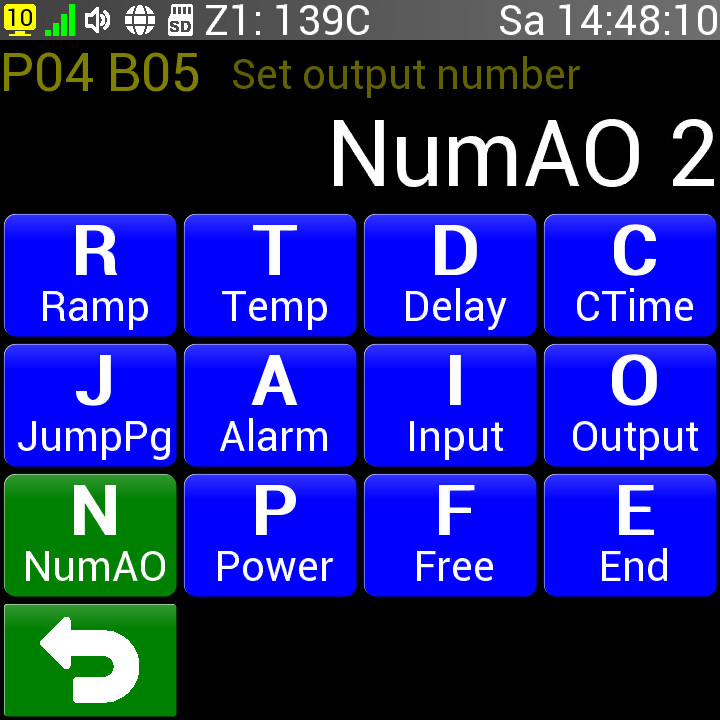

•Command N = CisAO allows you to select the analog output for other blocks with power settings.

•Peripherals such as a fan, damper, etc. can be connected to the analog outputs, and with this command we select which output we will work with.

•There can be up to 4 analog outputs (voltage or current - see article Controller connectors).

•When the program is currently running, analog output No. 1 is preset.

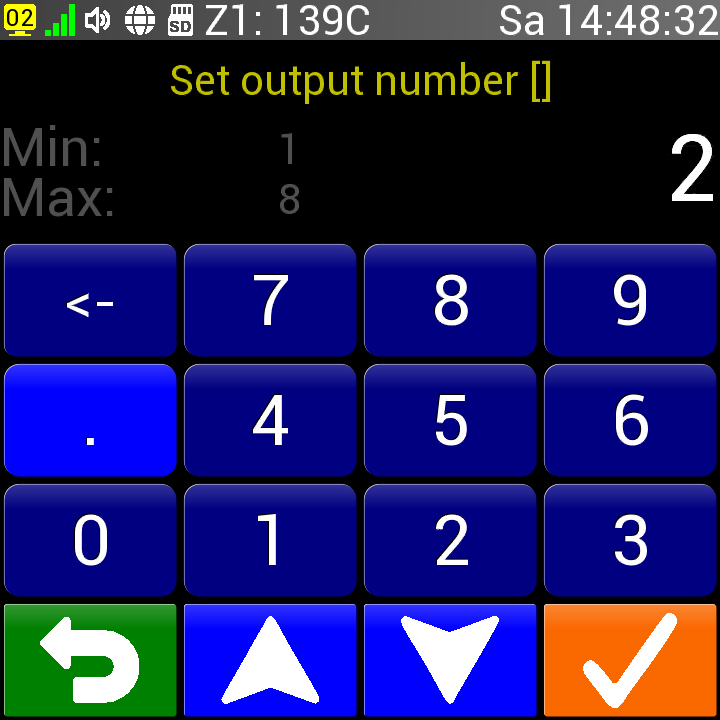

After pressing the N (CisAO) button, the screen for entering the analog output number will appear.





•The analog output number range is 1 - 8.

•The value can be entered using the numeric keypad or the up and down arrows.

•If we hold the up or down button, the value will change faster and faster.

•An incorrectly entered value cannot be confirmed with the button  (OK).

•With a button  (Back) we cancel the addition or change of the block.
