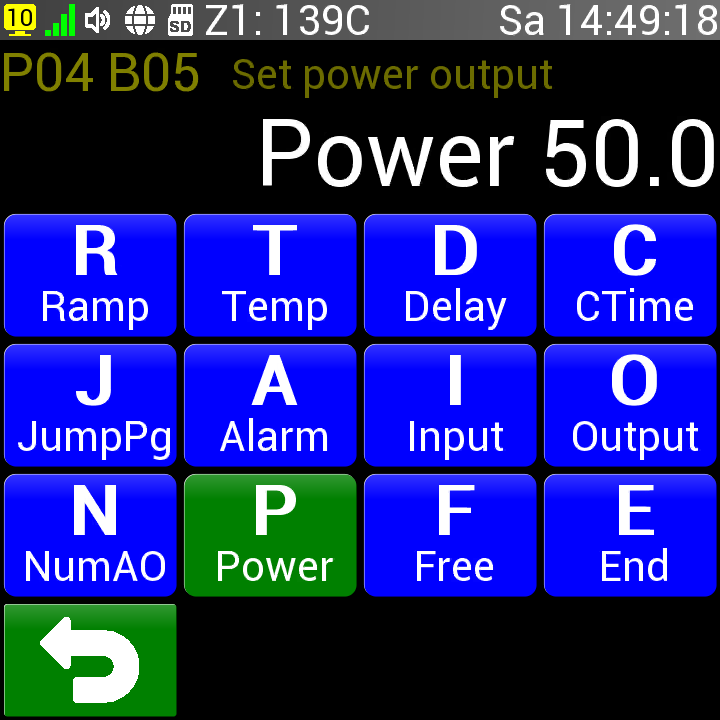

•Command P = Power allows you to select the analog output for other blocks with power settings.

•There can be up to 4 analog outputs (voltage or current - see article Controller connectors).

•The selection of the analog output that we will set is done using Command N (CisAO).

•If the analog output is selected in the heating mode, the P (Power) command sets the maximum heating power, which will not be exceeded until the next power setting. When entering Auto the maximum heating power is calculated by default according to the Settings (article Maximum performance at 0°C and so on).

•If the analog output is in cooling mode, the P (Power) command will set the output exactly to the specified value. When entering Auto automatic cooling regulation will take place.

•When the analog output is set to Program mode, the output is set exactly according to the entered value. The entered value Auto in this case it assigns a power of 0.0 to the output.

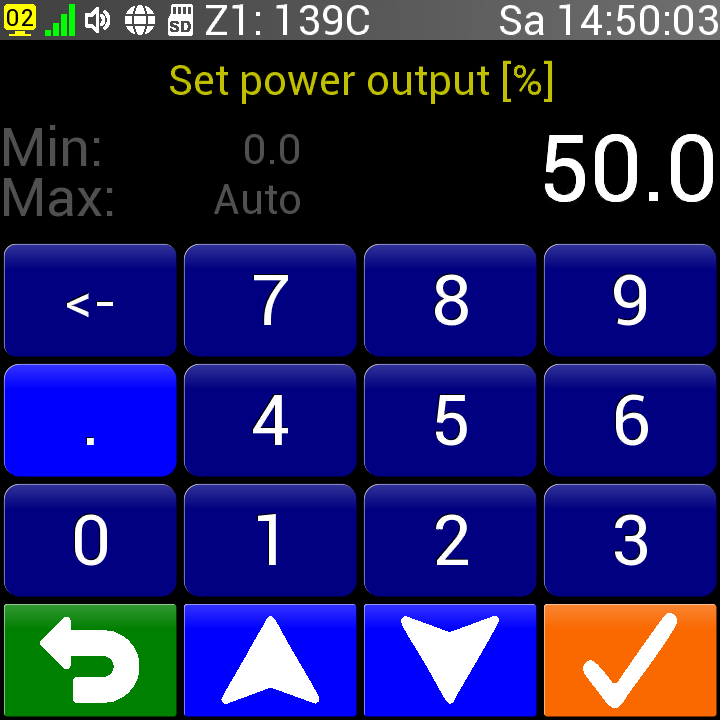

After pressing the P (Power) button, the screen for entering the value for the analog output will appear.







•The analog output value range is 0.0-100.0 (percent) or Auto (corresponds to 100.1%).

•If we have set the value to 0.0 (just press the 0 button after entering this screen), then instead of the delete button, the Auto button will appear, with which we can directly set the Auto value.

•The value can be entered using the numeric keypad or the up and down arrows.

•If we hold the up or down button, the value will change faster and faster.

•An incorrectly entered value cannot be confirmed with the button  (OK).

•With a button  (Back) we cancel the addition or change of the block.
