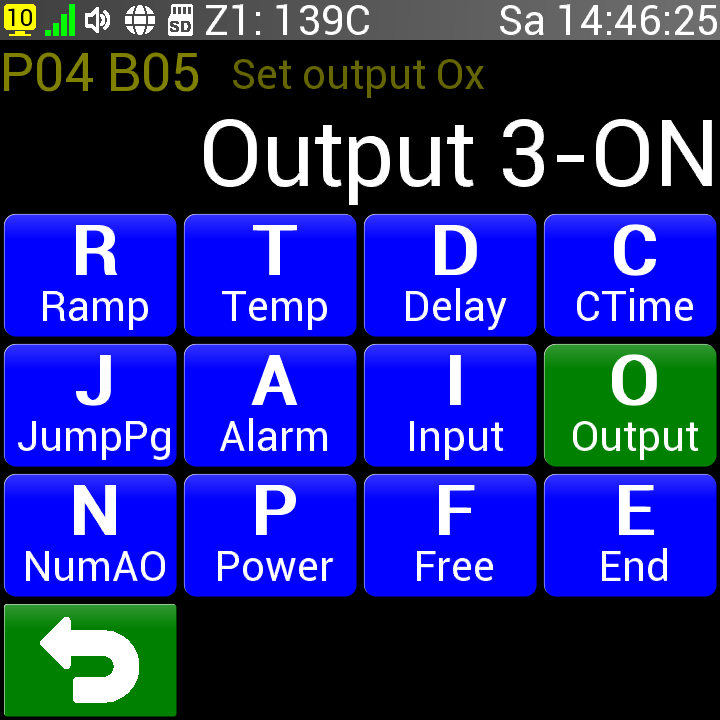

•Command O = Output enables control of the digital outputs of the CLARE controller.

•Peripherals such as a fan, damper, siren, etc. can be connected to the digital outputs.

•The outputs are controlled by switching relays (3 A / 240 V), of which there can be up to 5 in the controller itself.

•When the program is switched off or just started, all program outputs are in the OFF state.

•The OFF state corresponds to a logical 0 at the output, the ON state corresponds to a logical 1 at the output.

•A function other than the program output can be assigned to the outputs (alarm, contactor, etc., see article Ox digital output mode), then the set output status is ignored in the program.

•If the selected digital output is not present in the controller, the command will not appear on the controller terminals.

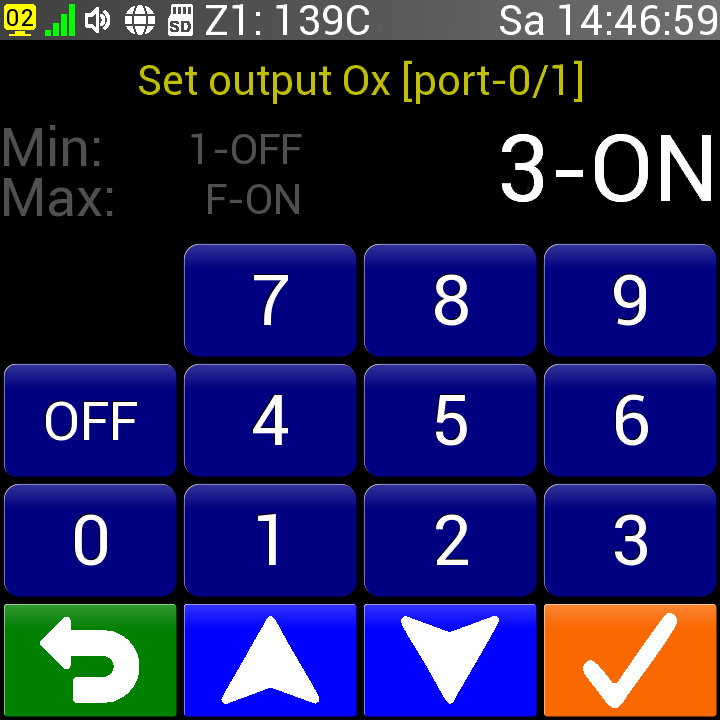

After pressing the O (Output) button, a screen for entering the number and desired output status will appear.





•The output number range is 1 to F and the status can be ON or OFF.

•The value can be entered using the numeric keypad or the up and down arrows.

•If we hold the up or down button, the value will change faster and faster.

•An incorrectly entered value cannot be confirmed with the button  (OK).

•With a button  (Back) we cancel the addition or change of the block.
