Program block selection

The controller has available for each program 99 blocks labeled 01 to 99. A block can be selected by rotating the list of blocks, using the up and down arrows, or by directly entering the block number.

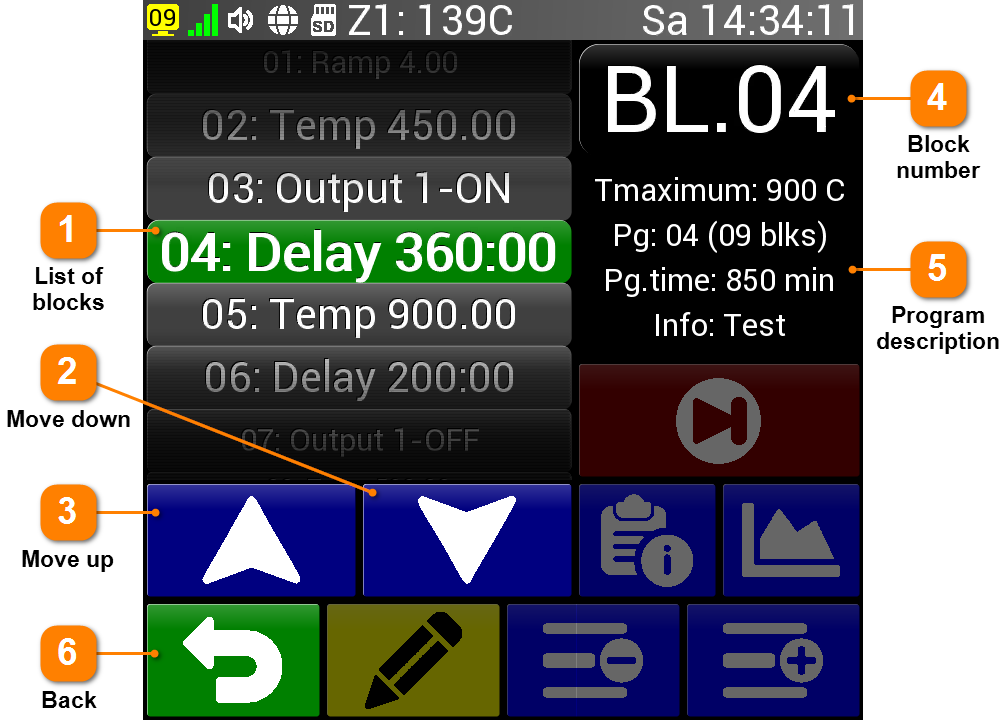

	List of blocks
	A block can be selected with a rotary control with a list of blocks. The list can be scrolled with your finger or let it scroll automatically by constantly touching the top or bottom of the rotary control. The selected block has a green background and a larger font.

	Move down
	With this button, we move the list of blocks down to higher block numbers. If the button is held for a longer time, scrolling automatically speeds up. Block number 99 cannot be moved further.

	Move up
	Use the down button to move the list of blocks up to lower block numbers. If the button is held for a longer time, scrolling automatically speeds up. Block number 01 cannot be moved further.

	Block number
	Displays the number of the currently selected block. If this number (button) is pressed, the screen for directly entering the block number is activated, see below.

	Program description
	The basic characteristics of the entire program are listed here: the maximum temperature, the number of program blocks and the expected duration of the program. The information is automatically updated with any changes.

	Back
	Return to the previous screen

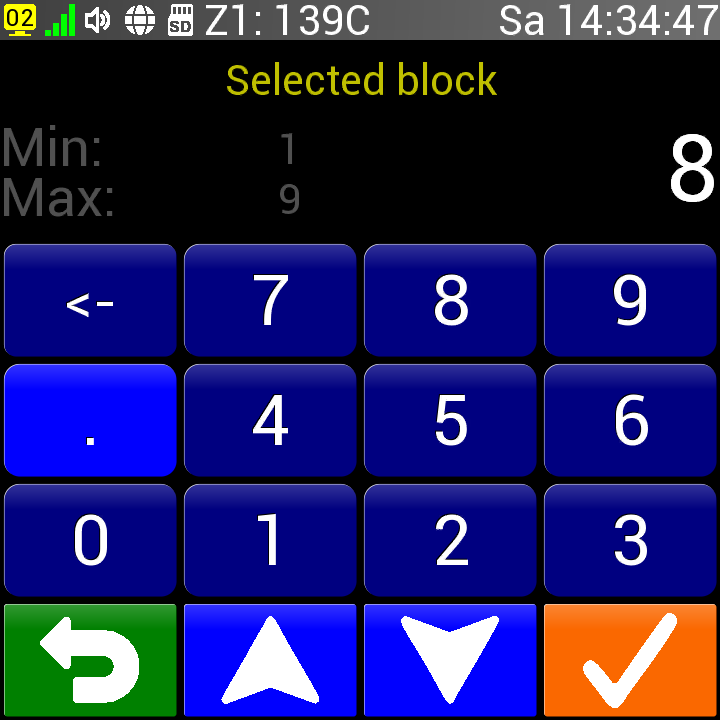

If the Block Number button is pressed, the following screen will appear where you can enter the desired block number. When the button is pressed (Back) the original block number remains valid when the button is pressed the entered block number is confirmed and the controller returns to the previous screen and shifts the list of blocks to the entered block.
