Starting the program |
|
.png)

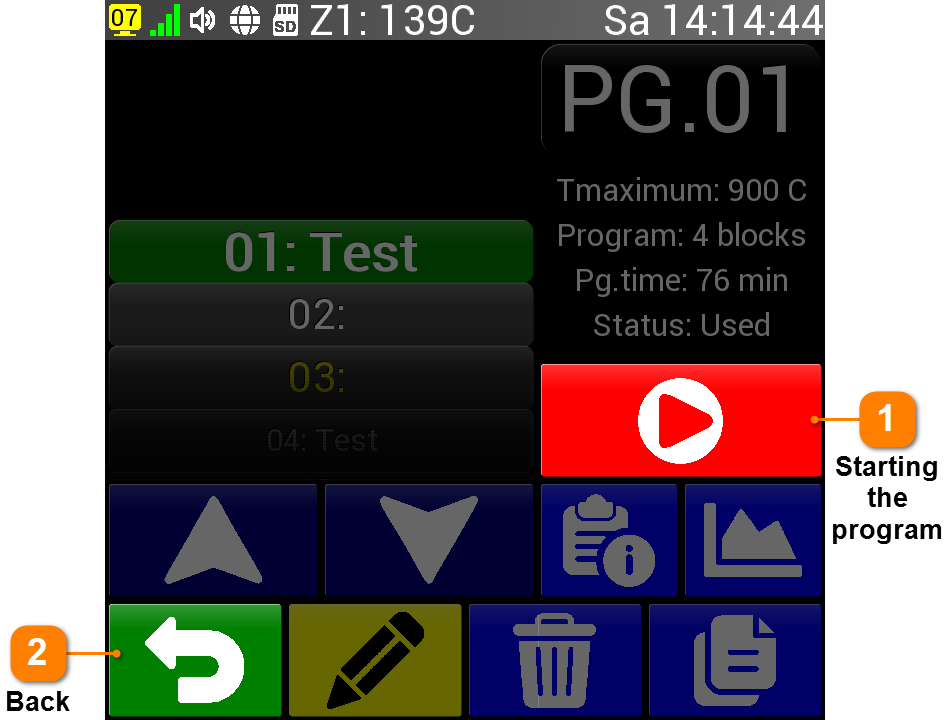

If we select a program that is not free (empty) in the previous article, a button to start the program will appear. If we do not want to start the program and want to leave the programming program, we use the button .png){kind=small}
(Back). When using the button .png){kind=small}

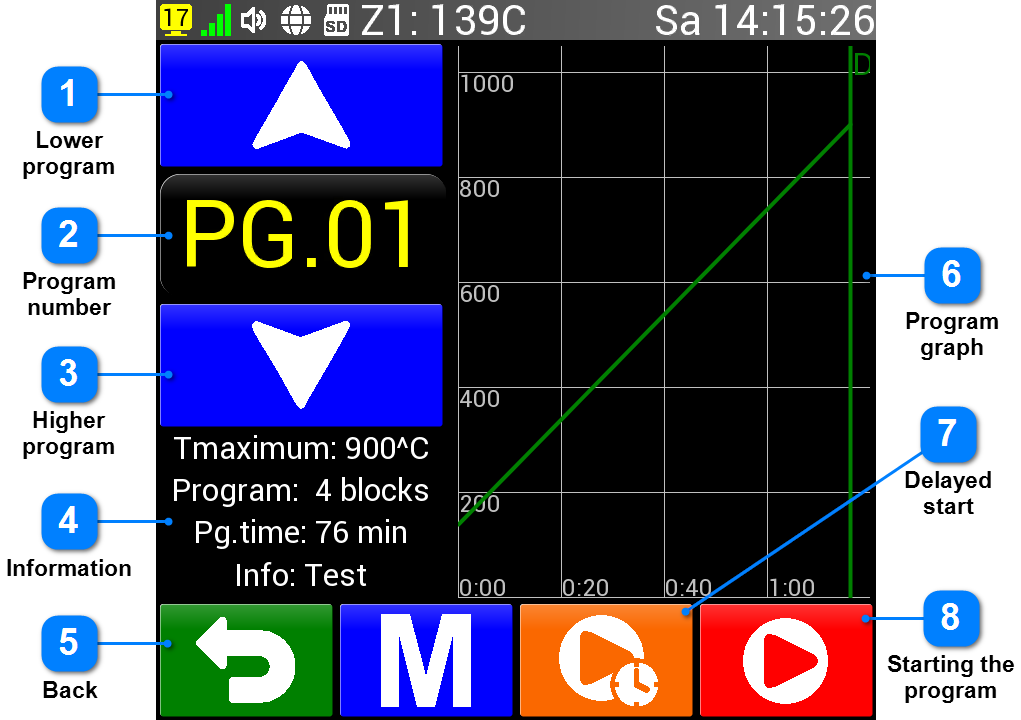

(Start) the following preparation screen for starting the program will appear:
.png)
|
Lower program |
|
|
Selecting a program with a lower number than the currently selected one. The program must be used. If there is no longer a used program with a lower number, the used program with the highest number is selected. |
-number-1.png)
|
Program number |
|
|
Number of the currently selected program. Information and a graph are displayed for this program. |
-number-2.png)
|
Higher program |
|
|
Selecting a program with a higher number than the currently selected one. The program must be used. If there is no longer a used program with a higher number, the used program with the lowest number is selected. |
-number-3.png)
|
Information |
|
|
Here we find basic data about the selected program: maximum temperature, number of blocks and expected program time and program description. |
-number-4.png)
-number-5.png)
|
Program graph |
|
|
Graphic display of the selected program. When you click on this graph, the graph expands across the entire screen, when you press it again, it goes back. |
-number-6.png)
|
Delayed start |
|
|
Possibility of delayed start of the program. More information in the article Delayed start. |
-number-7.png)
|
Starting the program |
|
|
Starting the program. The home screen will appear and the controller will start executing the selected program. |
-number-8.png)
