Program selection |
|
.png)
After pressing the button .png){kind=small}
(Programs) or buttons Programs in Menu we will get to the program selection.

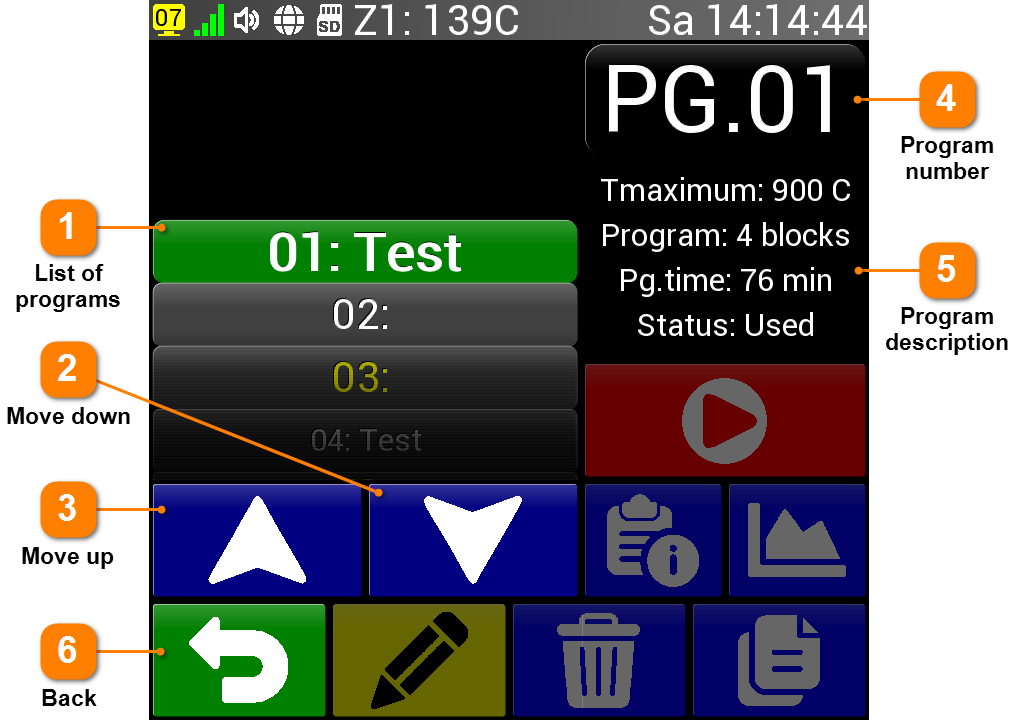

The controller has 99 programs available, labeled 01 to 99. The program can be selected by rotating the list of programs, using the up and down arrows, or by directly entering the program number.
|
List of programs |
|
|
The program can be selected with the rotary control with the list of programs. The list can be scrolled with your finger or let it scroll automatically by constantly touching the top or bottom of the rotary control. The selected program has a green background and a larger font. If the program number and any label is yellow, it is a free program. In the case of red color, it is a currently running program. |
-number-1.png)
|
Move down |
|
|
With this button, we move the list of programs down to higher program numbers. If the button is held for a longer time, scrolling automatically speeds up. Program number 99 cannot be moved further. |
-number-2.png)
|
Move up |
|
|
Use the down button to move the list of programs up to the lower program numbers. If the button is held for a longer time, scrolling automatically speeds up. Program number 01 cannot be moved further. |
-number-3.png)
|
Program number |
|
|
Displays the number of the currently selected program. If this number (button) is pressed, the screen for directly entering the program number is activated, see below. |
-number-4.png)
|
Program description |
|
|
In the case of a used (not empty) program, the basic characteristics of the program are written here: the maximum temperature, the number of program blocks and the expected duration of the program. If the program is not used, only information about the free status is displayed. |
-number-5.png)
-number-6.png)

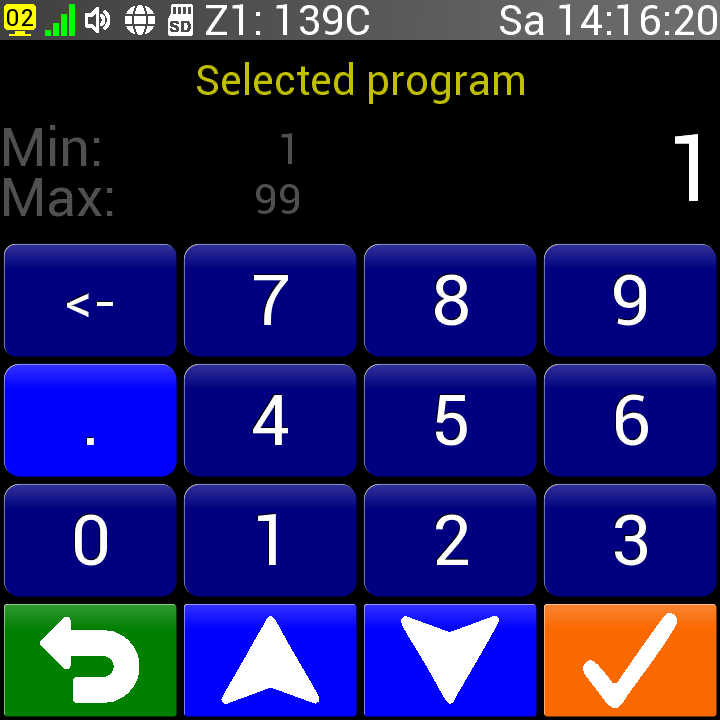

If the Program number button is pressed, the following screen will appear, where you can enter the desired program number. When the button is pressed .png){kind=small}
(Back) the original program number remains valid when the button is pressed .png){kind=small}
the entered program number is confirmed, the controller returns to the previous screen and the list of programs moves to the program with the entered number.
.png)
