Thermostat mode

Thermostat mode is the easiest way to use the controller. The principle is the same as for a room thermostat: the desired temperature is set, and the controller tries to maintain it. For setting, there are only two buttons on the button bar for decreasing or increasing the desired temperature. After a possible power failure, the controller continues to regulate to the last set temperature. Activating Thermostat mode is described in the article: Thermostat function. Deactivation is done via Settings (first you need to activate the Menu screen - see the article Menu).

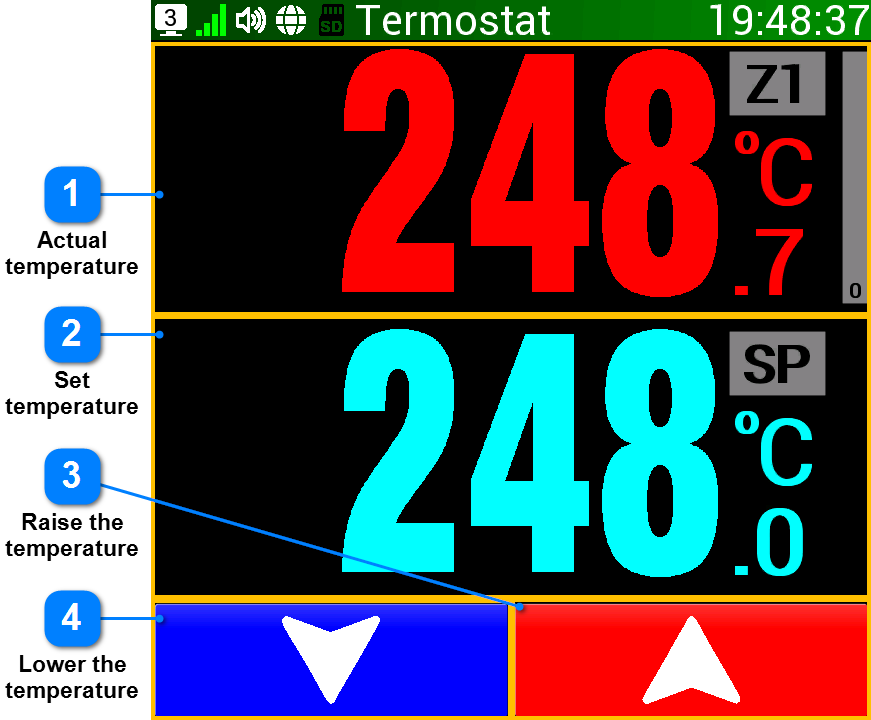

	Actual temperature
	The actual temperature in the main zone 1. The color, label Z1 , the number of decimal places and the bar graph of the current performance can be configured in Settings.

	Set temperature
	The last set temperature (Set Point). The color, label Z1 and the number of decimal places can be configured in Settings.

	Raise the temperature
	Button to increase the set temperature. It is possible to hold the button to increase the set temperature repeatedly at an accelerated rate. The temperature increase step can be selected in Settings (see the article Step on temperature change).

	Lower the temperature
	Button to decrease the set temperature. It is possible to hold the button to repeatedly reduce the set temperature rapidly. The temperature reduction step can be selected in Settings (see the article Step on temperature change).
