Controller CLARE 5:
Controller CLARE 5

A copy of the program

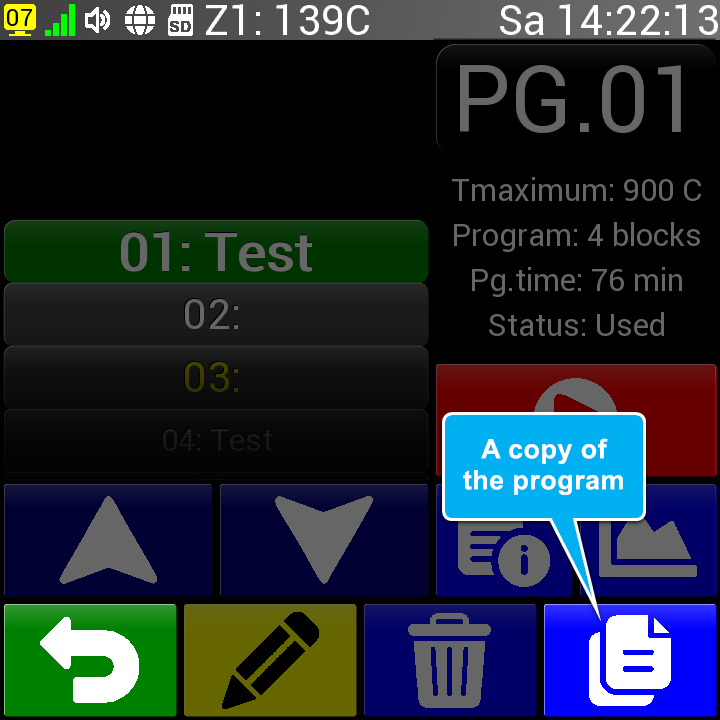

It is also possible to copy the selected program to another position and thus facilitate the creation of another program that does not differ much from the original program. If the program is empty, this function (the Copy button) is not available. After pressing the button  (Copy) the following screen will appear:

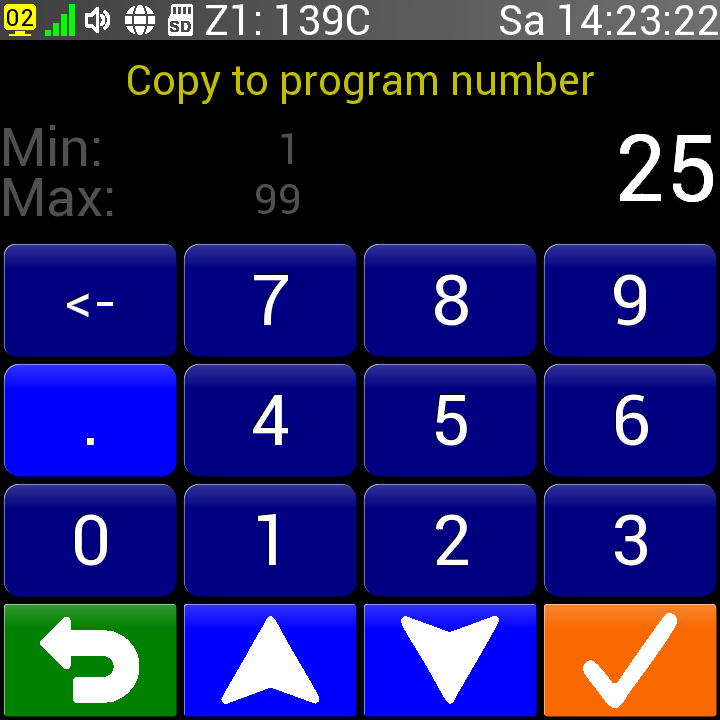

On this screen, we enter the program number (position) to which we want to copy the previously selected program. With a button  (Back) we return to the previous screen without copying the program, it is actually canceling the copy operation. Button  (OK) on the other hand confirms the copying and the program is copied to the specified position. At the same time, it returns to the previous screen and moves the list of programs to a new position. This will facilitate its possible further editing.
