Jumpers on the board

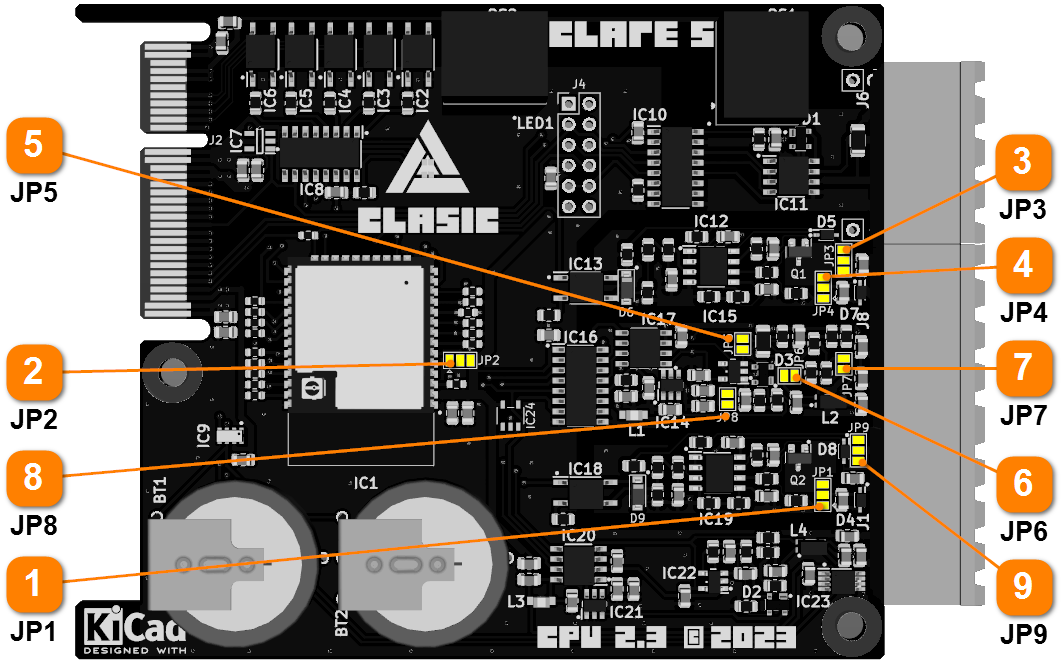

Inputs and outputs on the processor board of the controller can be configured. The input marked TC (clamps C11, C12) is a fixed thermocouple, while the second input AI2 can be set as thermocouple, voltage or current. Both outputs AO1 and AO2 they can be configured as voltage or current. The basic configuration includes two thermocouple inputs and two voltage outputs. In the following jumper overview, the default configuration is highlighted in bold.

JP1

upper jumper - current output AO1

lower jumper - voltage output AO1

	JP2
	Reserved - no function Standard settings -right jumper

JP3

upper jumper - voltage output AO2

lower jumper - current output AO2

JP4

upper jumper - current output AO2

lower jumper - voltage output AO2

JP5

connected - voltage input 0 - 10 V

disconnected - thermocouple or current input 4 - 20 mA

JP6

connected - current input 4 - 20 mA

disconnected - thermocouple or voltage input 0 - 10 V

JP7

connected - thermocouple or current input 4 - 20 mA

disconnected - voltage input 0 - 10 V

JP8

connected - current input 4 - 20 mA or voltage input 0 - 10 V

open - thermocouple input

JP9

upper jumper - voltage output AO1

lower jumper - current output AO1

Default jumper configuration on the processor board are highlighted in bold.

INPUT	TYPE	JP5	JP6	JP7	JP8
TC (AI1)	thermocouple	-	-	-	-
AI2	thermocouple	X	X	S	X
	voltage	S	X	X	S
	current	X	S	S	S

X - disconnected, S - connected

EXIT	TYPE	JP1	JP3	JP4	JP9
AO1	voltage	D	-	-	H
AO1	current	H	-	-	D
AO2	voltage	-	H	D	-
AO2	current	-	D	H	-

D - lower jumper, H - upper jumper
