Button bar |
|
.png)

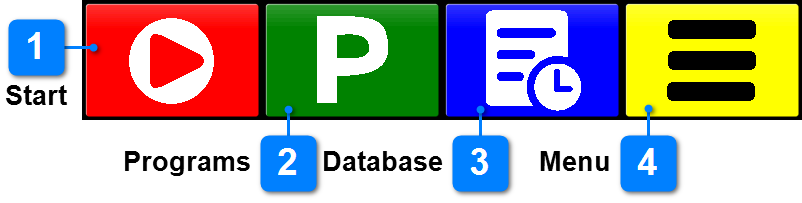

The button bar is primarily intended to display control buttons that are relevant to the displayed screen. The button bar for each screen is predefined by the manufacturer, except for user screens. The bar can contain 1 to 6 buttons. Buttons can display either the corresponding icon or a short text label. Display in text format can be selected in Display settings. Most buttons will display the appropriate screen when pressed. Some buttons can be held down (e.g., the up and down arrows) to automatically repeat their function. In the following legend, the buttons are shown with both an icon and text.
|
Start |
||
|
|
The Start button you to select and run a specific program in the controller. A screen will appear with the option to select the program number (or parameters in manual mode) and to choose between immediate or delayed start. The button is red by default. |
|
-number-1.png)
-control-1.png)
.png)
|
Programs |
||
|
|
With the Programs button it is possible to enter programming mode (if enabled in Settings). Here, you can view, create, or edit all programs in the controller. By default, the button is green. |
|
-number-2.png)
-control-2.png)
.png)
|
Database |
||
|
|
Using the Database button, it is possible to switch to the display of the last 200 temperature firings. On this screen, we can then see the details of these firings, including the relevant graph. The button is blue by default. |
|
-number-3.png)
-control-3.png)
.png)
|
Menu |
||
|
|
The Menu button brings up a screen with a basic menu of functions and controller settings. The three buttons mentioned earlier are also located on this screen. The settings here are already divided into relevant sections. The button is yellow by default. |
|
-number-4.png)
-control-4.png)
.png)
All buttons are then described in detail in the appendix List of all buttons. The following is a selection of frequently used buttons:
|
|
Delayed start |
|
|
Stop the program manually |
|
|
Pause the program |
|
|
Skipping a program block |
|
|
Activation of manual mode |
|
|
|
|
|
Return to the previous screen |
|
|
Next page, more items in the selection |
|
|
Increasing the value, scrolling the list |
|
|
Decreasing the value, scrolling the list |
|
|
|
|
|
Editing the program |
|
|
Editing the program label |
|
|
Deleting the entire program |
|
|
Creating a copy of the program |
|
|
Removing a program block |
|
|
Inserting a program block |
|
|
Save the changes made |
|
|
|
|
|
Preview of the created screen, WiFi password |
|
|
Program or progress graph |
