Description of the status bar

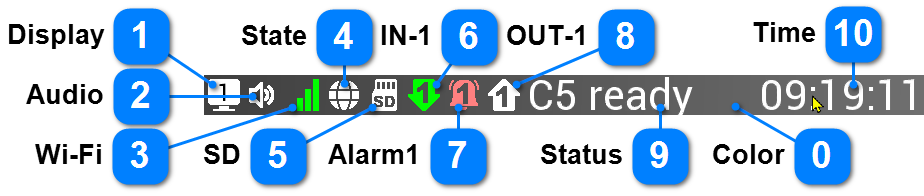

The status bar of the controller displays the status of its various components. The basic information is the background color of the bar, which indicates the idle state, running program, delayed start, or controller failure. The bar is highly customizable. Positions 1 - 8 are optional, and none may be shown. The order of the icons in positions 1 - 8 can also be adjusted, allowing for different configurations of the status bar on the controller. Additionally, the configuration allows you to display additional icons (Alarm2 to Alarm5, OUT-2 to OUT-5) or leave certain positions empty. All options can be combined, so, for example, it is possible to display only outputs OUT-1 to OUT-4 on the status bar. The status of the controller (9) is shown immediately after the last displayed icon. Details of the status bar configuration are covered in the article Status bar.

	Color
	The background color of the status bar indicates one of the four states in which the controller is currently located:
		gray bar - idle state of the controller
		green bar - running program
		blue bar - waiting for the program to start (delayed start)
		red bar - malfunction (suspended regulation, thermocouple error, etc.)

	Display
	This icon shows which screen the controller is currently displaying. Predefined main screens are white, user main screens are blue, and other screens are yellow. The displayed number helps to identify the screen in this manual, during technical support, etc.
		Predefined main screen (1 - 4)
		User main Screen (1 - 16)
		Work screens (1 - 64)

	Audio
	The Audio icon displays the volume of the controller’s audio output. The sound output works only in the PRO variant of the controller. If the sound is muted, it will be displayed in black; otherwise, it will be displayed in white with three volume levels.
		Sound off
		Volume 5 - 33 Volume 34 - 67 Volume 68 - 100

	Wi-Fi
	Under the WiFi icon, you can find information about the status of the WiFi network. The information includes the WiFi mode (off, AP, Client) and, in the case of a Client, the signal quality between the controller and the selected network.
		The WiFi network in the controller is turned off
		The WiFi network is in AP mode (it is possible to connect to the controller)
		The WiFi network is in Client mode but does not have sufficient signal to connect to the selected network
		The WiFi network is connected to the selected network (signal quality 1 - 4)

	State
	This icon informs about the status of the LAN/485 communication of the controller with another device.
		LAN/485 communication is disabled (black color)
		LAN/485 communication is enabled (white color)

	SD
	This icon shows if an SD (micro SD) card is connected. The micro SD card is connected only in the PRO version of the controller. If the card is not present, the icon is displayed in black; if present, the icon is white. In case of activity (writing and reading from the card), the icon is displayed in green.
		The micro SD card is not connected.
		The micro SD card is connected but not active.
		The micro SD card is connected and active.

	IN-1
	The IN-1 icon shows the status of the IN-1 digital input. If the input is at logic level 0, the color of the icon is light gray, in the case of logic level 1, the icon is green.
		Input IN-1 is at logic level 0 (OFF)
		Input IN-1 is at logic level 1 (ON)

	Alarm1
	Under the Alarm1 icon, you can find information about the status of alarms. During the configuration, it is possible to choose an alarm number from 1 to 5. Disabled alarms are shown in black, inactive alarms in white, and active alarms change color between pink and red every second.
		Disabled alarms (still inactive) 1 - 5
		Inactive alarms 1 - 5 enabled
		Activated active alarms 1 - 5

	OUT-1
	This icon informs about the status of digital outputs 1 - 5
		Digital output switched off (still inactive) 1 - 5
		Inactive digital output (logic level 0) 1-5
		Active digital output (logic level 1) 1 - 5

Status

The status of the controller briefly describes the situation in which the controller is located. These conditions can be:

•Guide The controller is in the controller installation wizard mode. In this mode, it is necessary to follow the instructions on the display. More information in the article Installation Guide.

•Ready The controller is ready to start the program.

•Z1: 25°C When controller does not show the main screen it gives information about the current temperature in zone 1.

•Thermostat Thermostat mode - the set temperature is constantly regulated.

•Prog. 01 alternates with Mo 09:30 The controller is waiting for the automatic start of the program (delayed start). It shows the program number, day and start time.

•Manu PG The manual program is started (one ramp, temperature and delay). In the controller, the manual program is stored as program number 0.

•P02 B04 The program is already running. The controller displays the number of the executed program and the currently executed program block.

•Error 3000 An error occurred in the controller. Details can be found in the article Error messages.

•P02 Pause The program is suspended. The number of the program being executed is displayed (in the case of manual program P00 is displayed).

Time

The last item on the status bar is the current time. It is always aligned with the right edge of the status bar. It is also user-configurable in four versions, each of which can display the date for one second every 10 seconds.

•WW HH:MM:SS or WW DD.MM.YY e.g. We 22:15:23 or We 29.08.23

•HH:MM:SS or date DD.MM.YY e.g. 22:15:23 or date 29.08.23

•WW HH:MM or WW DD.MM e.g. We 22:15 or date We 29.08

•HH:MM or date DD.MM e.g. 22:15 or date 29.08

Color of current time:
white = the stopwatch or minute timer app is not running
yellow = the stopwatch application is running
blue = the minute timer application is running
green = both the stopwatch and minute timer app are running
red = the countdown of the minute timer app has ended
