Controller CLARE 5:
Controller CLARE 5

Suspension of regulation

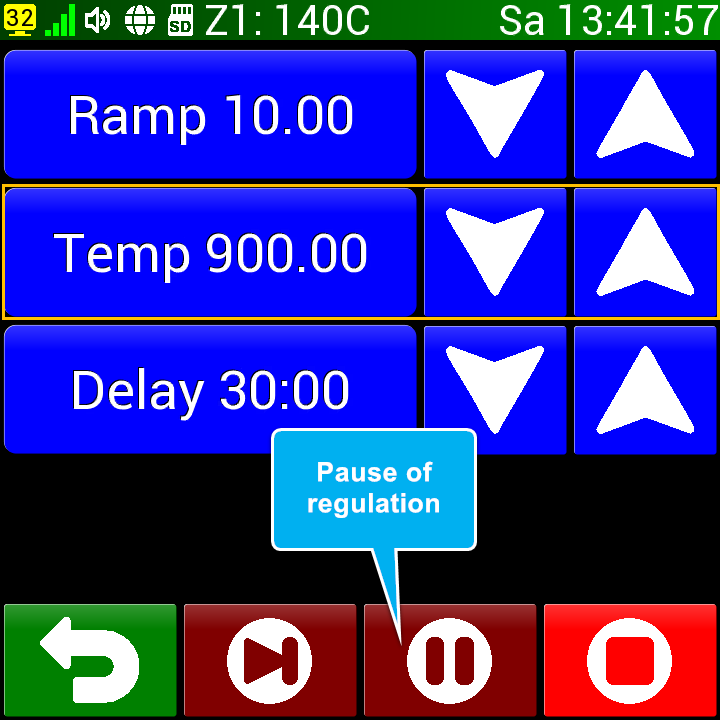

By pressing the  (Stop) button on the home screen while the program is running, we are taken to the screen for preparing to end the program. If in option to pause (suspend regulation) is enabled in Settings (article Option to skip and pause), a corresponding brown button will appear in the button bar (see the top image).

If we press the  (Pause) button, regulation is suspended. The status bar will turn red and if we return to the home screen, we will see  P02 Pause displayed in the status bar (or P00 for a manual program). If a ramp is in progress, the regulated temperature will stop changing. If a delay is in progress, the delay time will be suspended. The controller will maintain the last regulated temperature during the suspension. In the event of a power failure, the suspension remains active and must be manually turned off.

The suspension is turned off by pressing the  (Pause) button again on the program exit preparation screen (see the top image).
