Example P01

We would like to select and run program 3.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  (Start) we go to the startup screen (if the program is not empty)

4. Again with the button  (Start) to confirm the launch of the program

Example P02

We need to label program 3 with our own label.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we go to the screen for entering the label

4. Use the qwerty or T9 button to select the keyboard that suits us better and enter our description

5. Confirm the entry of the label with the button  (OK), this will also write the label into the controller's memory

6. In the program listing, we can already see our label next to the program number

7. Press the button to return to the home screen  (Back)

Example P03

We request to display the graph of program number 3.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we will display the graph of this program

4. Double-press the button to return to the home screen  (Back)

Example P04

We need to copy program number 3 into program number 5.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we go to the program copy screen

4. Use the arrows or numbers to enter 5 (the program we want to copy to)

5. Confirm the entry with the button  (OK), the program is copied and written into the controller's memory

6. Press the button to return to the home screen  (Back)

Example P05

We need to delete program number 3.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we will start the program deletion process. A large confirmation button will appear

4. If we really want to delete the program in time, we confirm it with the button

5. The program is deleted along with its description, and in the information we see that it is now free

6. Press the button to return to the home screen  (Back)

Example P06

We want to see program number 5.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.05 program using the rotary control or the arrows

3. With the button  we will display the list of blocks of this program

4. Use the up and down arrows or the rotary control to view the entire program

5. We return to the home screen by pressing the button twice  (Back)

Example P07

We need to create a new program number 3 (now free). We would like to enter a delay of 120 minutes at a temperature of 1000°C, which we will reach as quickly as possible.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we will display the list of blocks of this program (so far only the command End)

4. Press the button again  and select the first command R (Ramp)

5. By pressing a number 0 the rate of temperature change is displayed Fast, which we confirm with the button  (okay)

6. The next command will be temperature - we select the commandT (Temp.)

7. Use the numbers or arrows to set the value 1000.00 and confirm with the button  (okay)

8. The last command will be a delay - we select the command D (Delay)

9. Use the numbers or arrows to set the value 120:00 and confirm with the button  (okay)

10. By button  (Back) we return to the listing of program blocks

11. We will check the entered blocks 01 Ramp Fast, 02 Temperature 1000.00 and 03 Delay 120:00

12. Save the program in the controller's memory by pressing the button

13. We return to the home screen by pressing the button twice  (Back)

Example P08

In an hour we would like to start program number 3.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  (Start) we go to the startup screen (if the program is not empty)

4. Use the button to set the time for the delayed start  (Later)

5. Move the rotary clock forward one hour or enter the desired time with the buttons

6. Confirm the delayed start by pressing the button  (Later), the home screen will appear

7. Here on the now blue status bar we can see the program number and the time it will start

Example P09

For program number 3, we would like to change the delay to 60 minutes.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.03 program using the rotary control or the arrows

3. With the button  we will display the list of blocks of this program

4. Use the rotary control or the arrows to select the block with a delay that we want to fix

5. Press the button again  and select the marked command D (Delay)

6. Use the numbers or arrows to set the value 60:00 and confirm with the button  (okay)

7. Save the program change in the controller's memory by pressing the button

8. We will return to the home screen by pressing the button twice  (Back)

Example P10

Program number 8 is very long, block number 99 can no longer be overwritten.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.08 program using the rotary control or the arrows

3. With the button  we will display the list of blocks of this program

4. Select block number 98 using the rotary control, arrows or entering the block number

5. Press the button  and select the command J (JumpPg)

6. The original block 98 must be rewritten in the new program, whose number we now enter

7. Enter the program number that is free (empty) and confirm with the button  (okay)

8. Save the program change in the controller's memory by pressing the button

9. We return to the home screen by pressing the button twice  (Back)

10. We can continue writing the program on the entered free program

Example P11

We request to run program number 8 only from the fifth block.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.08 program using the rotary control or the arrows

3. With the button  we will display the list of blocks of this program

4. Select block number 5 using the rotary control, arrows or entering the block number

5. Press the button  (Jump) to start the program from the selected block

6. A large confirmation button will appear , by pressing which we confirm the launch

7. The controller will move to the home screen, the status bar will be green (running program)

Example P12

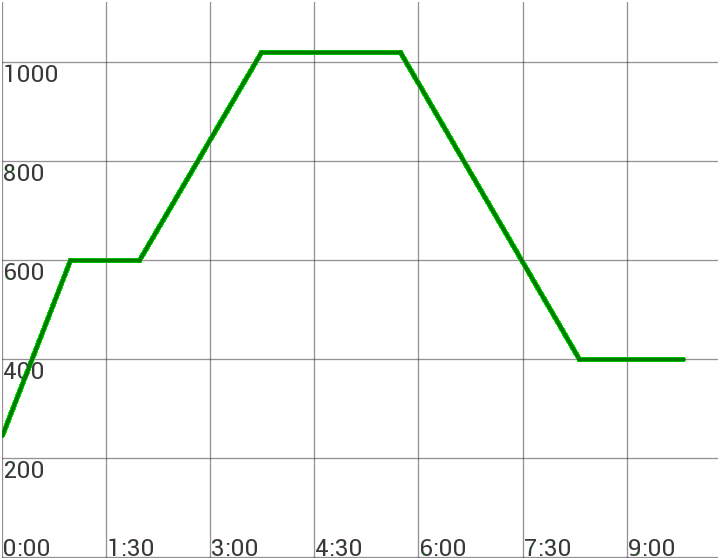

We need to program the temperature course given by the graph. We will use the free program 1.



•Ramp 6°C/min to 600°C, a delay of 60 minutes

•Ramp 4°C/min to 1020°C, delay here 120 minutes

•Ramp 4°C/min to 400°C, a delay of 90 minutes



1. Press the button to enter the programming mode  (Programs)

2. Select program PG.01 with the rotary control or arrows

3. With the button  we will display the list of blocks of this program (so far only the command End)

4. Press the button again  and select the command R (Ramp)

5. Use the numbers or arrows to set the value 6.00 and confirm with the button  (okay)

6. The next command will be temperature - we select the command T (Temp.)

7. Use the numbers or arrows to set the value 600.00 and confirm with the button  (okay)

8. Then there is a delay - we select the command D (Delay)

9. Use the numbers or arrows to set the value60:00and confirm with the button  (okay)

10. Now we select the command R (Ramp)

11. Use the numbers or arrows to set the value 4.00 and confirm with the button  (okay)

12. The next command will be the temperature - we select the command T (Temp.)

13. Use the numbers or arrows to set the value 1020.00 and confirm with the button  (okay)

14. Next, there will be a delay again - we select the command D (Delay)

15. Use the numbers or arrows to set the value 120:00 and confirm with the button  (okay)

16. Since the steepness of the down ramp is the same as in the previous ramp, we do not need to enter it again

17. Next comes the last temperature - we select the command T (Temp.)

18. Use the numbers or arrows to set the value 400.00 and confirm with the button  (okay)

19. The last command will be the third delay - we select the command D (Delay)

20. Use the numbers or arrows to set the value 90:00 and confirm with the button  (okay)

21. Save the program in the controller's memory by pressing the button

22. We return to the home screen by pressing the button twice  (Back)

Example P13

We require the most accurate start-up with a ramp of 1°C/min to a temperature of 150°C (we will limit the power consumption of the device to 15%). We will use the free program number 4.

1. Press the button to enter the programming mode  (Programs)

2. Select program PG.04 with the rotary control or arrows

3. With the button  we will display the list of blocks of this program (so far only the command End)

4. Press the button again  and select the first commandR (Ramp)

5. Use the numbers or arrows to set the value 1.00 and confirm with the button  (okay)

6. The next command will be setting the maximum power - we select the command P (Power)

7. Use the numbers or arrows to set the value 15.0 and confirm with the button  (okay)

8. The last command will be the temperature - we select the command T (Temp.)

9. Use the numbers or arrows to set the value 150.00 and confirm with the button  (okay)

10. Save the program in the controller's memory by pressing the button

11. We return to the home screen by pressing the button twice  (Back)

Example P14

We want to maintain a temperature of 1180°C every day from 6:00 a.m. to 6:00 p.m., and 400°C at night. We require the controller to reach temperature in one hour in the morning. We will use the free program 2.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.02 program with the rotary control or arrows

3. With the button  we will display the list of blocks of this program (so far only the command End)

4. Press the button again  and select the command C (CasNT)

5. Use the numbers or arrows to set the value 60:00 and confirm with the button  (okay)

6. The next command will be temperature - we select the command T (Temp.)

7. Use the numbers or arrows to set the value 1180.00 and confirm with the button  (okay)

8. Press the button again  and select the command A (Alarm)

9. Use the numbers or arrows to set the value 18:00 and confirm with the button  (okay)

10. Press the button again  and select the first command R (Ramp)

11. By pressing a number 0 the rate of temperature change is displayed Fast, which we confirm with the button  (okay)

12. The next command will be the temperature - we select the command T (Temp.)

13. Use the numbers or arrows to set the value 400.00 and confirm with the button  (okay)

14. Press the button again  and select the command A (Alarm)

15. Use the numbers or arrows to set the value 5:00 and confirm with the button  (okay)

16. We press the buttonand select the command J (JumpPg)

17. Enter the program number 2 (infinite loop) and confirm with the button  (okay)

18. Save the program in the controller's memory by pressing the button

19. We return to the home screen by pressing the button twice  (Back)

Example P15

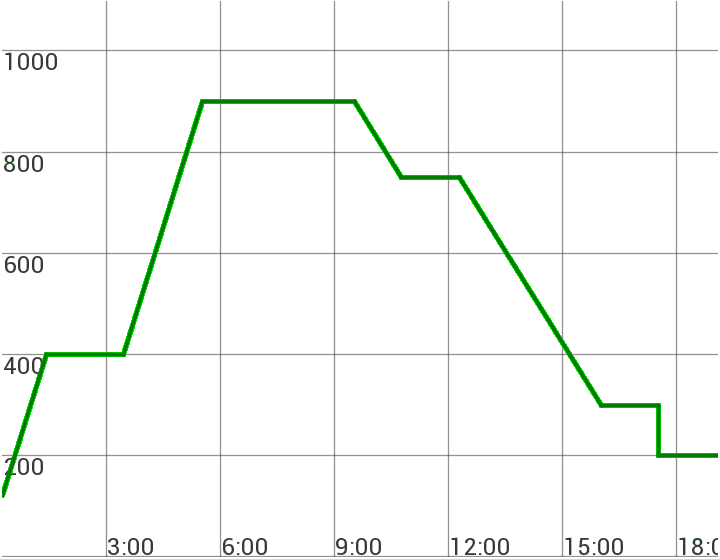

We need to program the cycle specified by the graph. The cycle will be carried out daily from six o'clock in the morning, after the end of the cycle the maintenance temperature will be 200°C. We will use program number 9.



•Ramp 4°C/min to 400°C, here a delay of 120 minutes

•Ramp 4°C/min to 900°C, here a delay of 240 minutes

•In 75 minutes at 750°C, a delay of 90 minutes here

•With a ramp of 2°C/min to 300°C, a delay of 90 minutes



1. Press the button to enter the programming mode  (Programs)

2. Select the PG.09 program using the rotary control or the arrows

3. Press the button again  and select the command A (Alarm)

4. Use the numbers or arrows to set the value 6:00 and confirm with the button  (okay)

5. Press the button again  and select the command R (Ramp)

6. Use the numbers or arrows to set the value 4.00 and confirm with the button  (okay)

7. The next command will be the temperature - we select the command T (Temp.)

8. Use the numbers or arrows to set the value 400.00 and confirm with the button  (okay)

9. Then there is a delay - we select the command D (Delay)

10. Use the numbers or arrows to set the value 120:00 and confirm with the button  (okay)

11. The ramp is the same (4 °C/min), there is no need to enter it

12. The next command will be the temperature - we select the command T (Temp.)

13. Use the numbers or arrows to set the value 900.00 and confirm with the button  (okay)

14. Next, there will be a delay again - we select the command D (Delay)

15. Use the numbers or arrows to set the value 240:00 and confirm with the button  (okay)

16. Now we select the command C (CasNT)

15. Use the numbers or arrows to set the value 75:00 and confirm with the button  (okay)

16. The next command will be the temperature - we select the command T (Temp.)

17. Use the numbers or arrows to set the value 750.00 and confirm with the button  (okay)

18. Then there is a delay - we select the command D (Delay)

19. Use the numbers or arrows to set the value 90:00 and confirm with the button  (okay)

20. Now we select the command R (Ramp)

21. Use the numbers or arrows to set the value 2.00 and confirm with the button  (okay)

22. The next command will be temperature - we select the command T (Temp.)

23. Use the numbers or arrows to set the value 300.00 and confirm with the button  (okay)

24. Next, there will be a delay again - we select the command D (Delay)

25. Use the numbers or arrows to set the value 90:00 and confirm with the button  (okay)

26. Now we select the command R (Ramp)

27. By pressing a digit 0 the rate of temperature change is displayed Fast, which we confirm with the button  (okay)

28. Next comes the last temperature - we select the command T (Temp.)

29. Use the numbers or arrows to set the value 200.00 and confirm with the button  (okay)

30. We select the command J (JumpPg)

31. Enter the program number 9 (infinite loop) and confirm with the button  (okay)

32. Save the program in the controller's memory by pressing the button

33. We return to the home screen by pressing the button twice  (Back)



Example P16

We need to 1100°C at a rate of 5°C/min and then a continuous delay. During the temperature increase, the damper on the digital output O4 must be opened. We will use the free program 7.

1. Press the button to enter the programming mode  (Programs)

2. Select the PG.07 program using the rotary control or the arrows

3. Press the button again  and select the command O (Output)

4. Use the numbers or arrows to set the value 4-ON and confirm with the button  (okay)

5. Press the button again  and select the command R (Ramp)

6. Use the numbers or arrows to set the value 5.00 and confirm with the button  (okay)

7. The next command will be the temperature - we select the command T (Temp.)

8. Use the numbers or arrows to set the value 1100.00 and confirm with the button  (okay)

9. We press the button again  and select the command O (Output)

10. Use the numbers or arrows to set the value 4-OFF and confirm with the button  (okay)

11. Next, there will be a delay again - we select the command D (Delay)

12. By pressing a number 0 a delay is displayed Cont, which we confirm with the button  (okay)

13. Save the program in the controller's memory by pressing the button

14. We return to the home screen by pressing the button twice  (Back)
