Controller CLARE 5:
Controller CLARE 5

Setting the maximum temperature

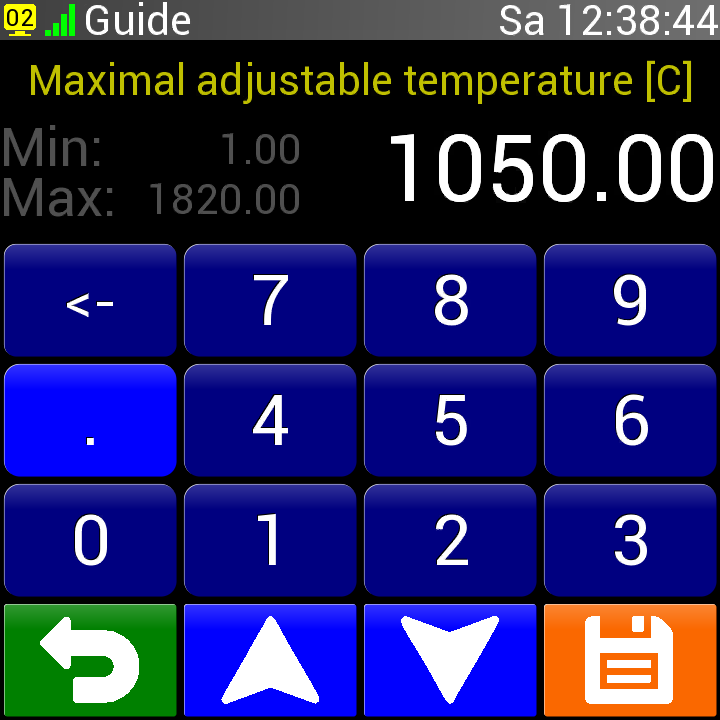

After selecting a thermocouple, a new screen will appear. In this step, you need to correctly enter the highest adjustable temperature for the connected device. This parameter will be provided by the documentation or manufacturer of the device. The value can be entered in two ways:

•using the numeric keypad in the middle of the screen

•using the up and down arrows at the bottom of the screen

Confirm the entered maximum temperature by pressing the button with the floppy disk icon.



CAUTION: Maximum temperature
If the maximum temperature is entered incorrectly and the regulation is set at temperatures higher than those allowed for the connected device, it may be damaged or destroyed by overheating! The entered maximum temperature must also not be higher than the maximum allowed temperature for the type of thermocouple selected in the previous step.
