Controller CLARE 5:
Controller CLARE 5

Date and time settings

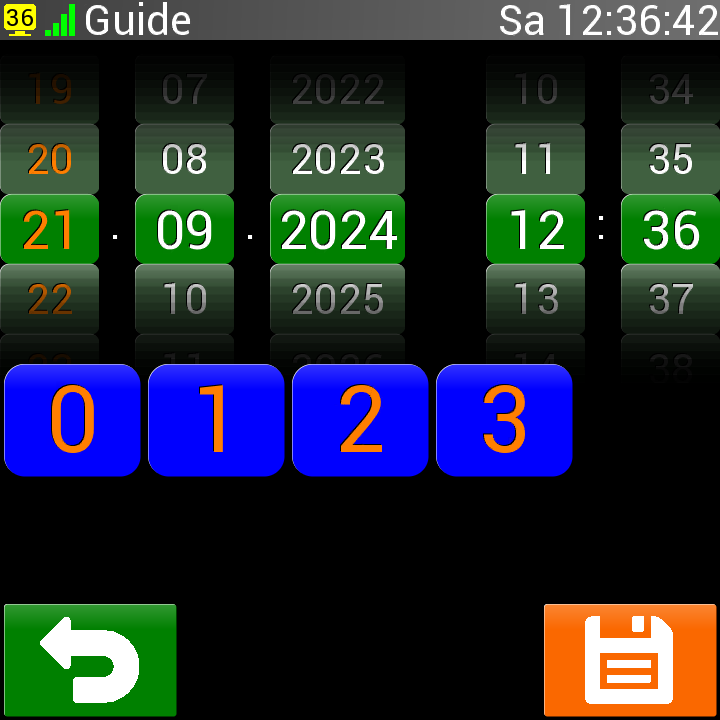

After pressing the button with the desired language, the following screen will be displayed. On this screen, you can set the current date and time. Values   can be entered in two ways:

by turning the appropriate dials at the top of the screen

by pressing the required digits at the bottom of the screen (the value 2 must be entered as 02)

After entering the current date, press the button in the lower right corner (diskette icon), which saves the date and time.



TIP: Accurate time setting
When the diskette button is pressed, the seconds of the current time are automatically reset. This allows for precise time entry.
