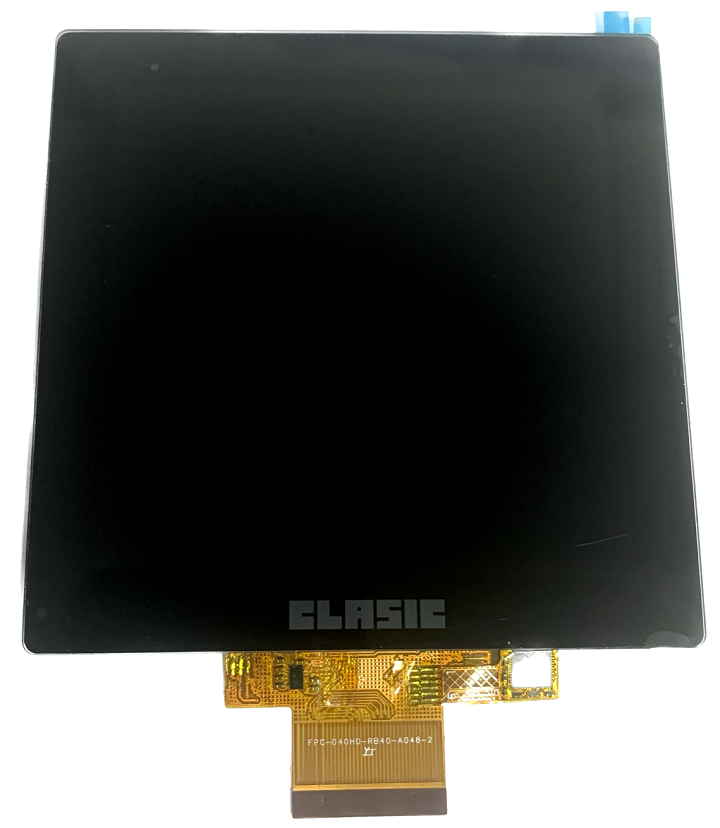

The custom display developed for the CLARE 5 controller offers a high resolution of 720 x 720 pixels on a 4" diagonal (101.6 mm). The TFT display supports 262,144 colors (RGB 18 bits) and has a typical brightness of 300 cd/m². Viewing angles are 85° in all directions. The backlight consists of 10 LEDs with a lifespan of 30,000 hours. In the settings, the image on the display can be rotated as desired. The display has a capacitive touch layer with increased accuracy. Due to the double thickness of the glass compared to similar displays, it has excellent resistance to damage.



Order code:

CL5-DISP
