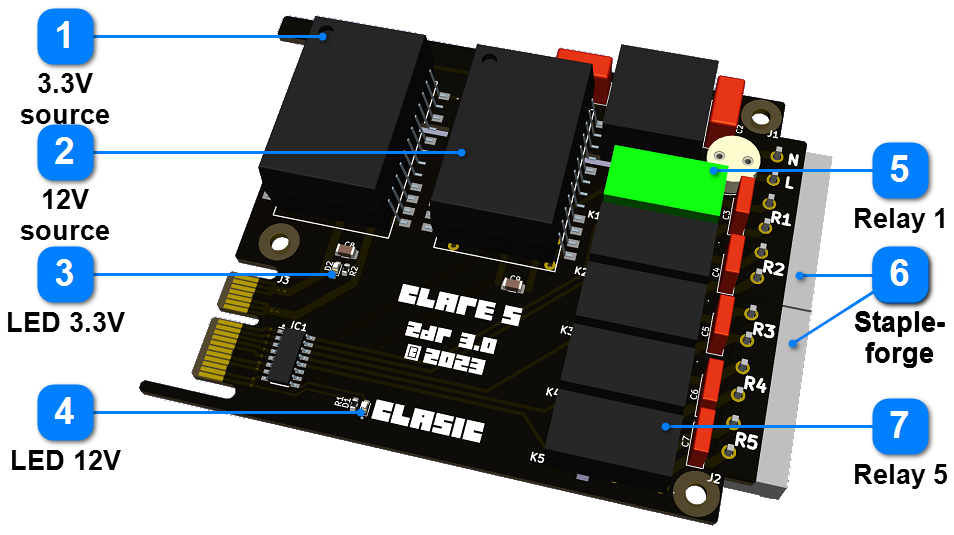

The power board contains a 230V power supply input filter, two pulse sources for 12V and 3.3V, 1 to 5 relay outputs (3 A / 240 VAC) and a terminal board. The input filter prevents the penetration of electromagnetic interference in both directions. The correct function of the pulse sources is confirmed by the illumination of the blue LED for voltage 3.3V and the green LED for voltage 12V. In the picture, the most frequently used Relay No. 1 (R1) is highlighted in green. The power board can be ordered in versions with the required number of relay outputs.



Order codes:

CL5-ZDR1 - board with one relay output

CL5-ZDR2 - board with two relay outputs

CL5-ZDR3 - board with three relay outputs

CL5-ZDR4 - board with four relay outputs

CL5-ZDR5 - board with five relay outputs
